性能
主板元件 |
Micro ATX |
主板芯片组系列 |
Intel |
音频系统 |
High Definition Audio |
组件应用 |
PC |
内存参数
可支持内存时钟速度 |
1066, 1600 MHz |
支持UDIMM时钟速度 |
1066, 1600 MHz |
无错误检测和更正 |
Y |
无缓冲内存 |
Y |
支持的内存类型 |
DDR3-SDRAM |
内存通道支持 |
Dual |
内存插槽类型 |
DIMM |
支持UDIMM模组容量 |
4GB |
最大UDIMM内存 |
8 GB |
內存插槽数量 |
2 |
背板输出端口
并口数量 |
1 |
PS/2连接埠数量 |
2 |
耳机输出端口 |
1 |
麦克风/音频输入插孔 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
基本輸出輸入系統/BIOS
基本输入输出系统类型 |
UEFI AMI |
ACPI的版本 |
5.0 |
内置输入/输出系统
USB 2.0接口 |
1 |
ATX电源接头 |
Y |
USB 3.0(第 1代3.1)连接器 |
1 |
SATA III连接器数量 |
2 |
周边(莫仕)电 源连接器(4针) |
1 |
CPU风扇接口 |
Y |
COM连接器数量 |
1 |
机箱风扇接头数量 |
1 |
前面板音频接头 |
Y |
扩展槽
PCI Express x1(Gen 2.x)插槽 |
2 |
PCI Express X16(Gen 2.x)插槽 |
1 |
处理器的特殊功能
英特尔®快速同步视频技术 |
Y |
英特尔®64 |
Y |
英特尔®身份保护技术 |
Y |
英特尔®虚拟化技术 |
VT-x |
英特尔®VT-x的扩展页表(EPT) |
Y |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®清晰视频高清技术 |
Y |
另外
InTru™3D技术 |
Y |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

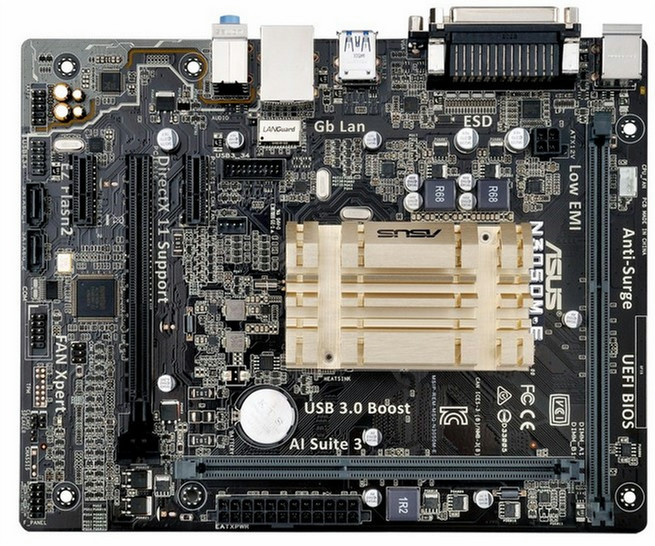

mATX Form Factor, Intel Celeron Dual-Core N3050 SoC onboard Processors, 2 x U-DIMM Max. 8GB DDR3, 2 x SATA 6Gb/s, Realtek RTL8111H, UEFI AMI BIOS
Low-power, fanless motherboard for Intel Celeron® SoC N3050 processors, with 5X Protection and HDMI/D-Sub support
- Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
- USB 3.0 BOOST (UASP Support):170% faster transfer speeds than traditional USB 3.0
- AI Suite 3:One-stop access to innovative ASUS features
- Fan Xpert:Dedicated CPU and case fan controls
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
Proven quality. Enduring trust.
Strict compatibility and validation
We are the world's biggest motherboard manufacturer, and renowned our design thinking that revolves around users – just like you. Our engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and undergo a minimum of 7,000 hours of strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.
ASUS 5X Protection
Hardware safeguards to ensure long-term durability
Our be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. We focus relentlessly on quality to ensure long-term system reliability and performance.
LANGuard for advanced LAN protection
ASUS LANGuard socket has advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, while surge-protected and electrostatically-guarded components (ESD Guards) protect your motherboard from lightning strikes and static electricity.
Enhanced DRAM overcurrent protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.
5K-hr solid-state capacitors that last 2.5X longer
Solid-state capacitors are able to withstand extreme temperatures of up to 105°C for as long as 5,000 hours — that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.
Stainless-steel back I/O that lasts 3X longer
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.
ESD Guards for protection from electrostatic discharge
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Proven compatibility
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Tested - 1,000+ compatible CPUs, memory modules, graphics cards and more
Every Braswell-based motherboard is compatible with thousands of devices. Our engineers fit and assess both server and consumer CPUs, hundreds of memory modules, dozens of graphics cards, loads of storage devices, power supplies, network devices, displays, optical drives, peripherals and many more. We do this to give you complete confidence in our products and their superb compatibility.
Complete & Public QVL
We're so confident in our Braswell-based motherboards' superior compatibility that we publish our entire QVL for all to see — delivering you more choices for worry-free PC-building experiences. There are no gaps in our QVL: every compatible component is on the list for all to see. To check that a particular component or device is compatible with your motherboard, just reference the QVL for instant reassurance.
Top-to-bottom reliability
Our motherboards have superb endurance. We verify this by subjecting every board to over 7,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust — with reliability that surpasses industry standards.
Extensive testing for extreme reliability, compatibility and safety
Each motherboard is subjected to extended reliability testing under heavy load conditions, from the transportation to daily operations, to make sure they are delivered to you in perfect condition. Trials include temperature and humidity, burn-in, power on/off, power consumption, insertion and thermal-shock testing among many others. Every certified-compatible component puts through an up to 24-hour aging test to ensure trouble-free operation every day – no matter what you fit or attach and no matter what you do!
Active quiet and cool with Fan Xpert
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
