处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
4 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
6 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| 火线接口数量 |
1 |
| 软盘驱动器接口 |
Y |
| CD/AUX音频输入 |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
N |
| GAME（游戏）/MIDI （乐器数字接口）端口 |
Y |
| 前面板音频接头 |
Y |
扩展槽
| PCI Express x16 插槽 |
2 |
| PCI Express × 1插槽 |
2 |
背板输出端口
| PS/2连接埠数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |

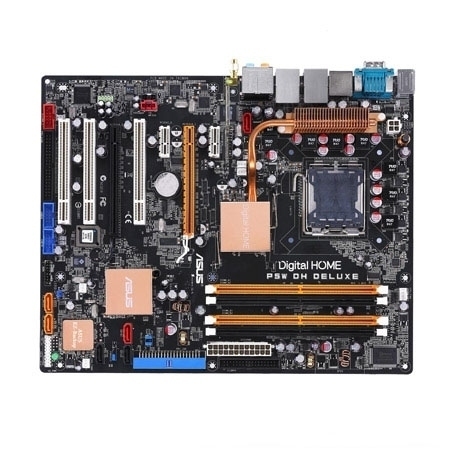

P5W DH Deluxe - LGA77, Intel 975X+ICH7R, FSB 1066/ 800 MHz, ATI CrossFire, ATX
P5W DH Deluxe is specially designed for Gamers, Personal Workstation, SoHo, high-end and multi-tasking PC users.
Digital Home
The rise of digital home is just like a tsunami that is poinsed to take over the PC industry. To enjoy the digitalized convinience, you need the ASUS Digital Home series motherboard, a system that is designed solely for this purpose. ASUS Digital Home series motherbaord enables users to control the computer at a distance away, setup wireless network to enjoy wireless Skype phone, charge mobile devices even when the PC is turned off, and backup the database automatically. Enjoy the comfort of digital home you deserve.
ASUS P5W DH Deluxe is specially designed for Gamers, Personal Workstation, SoHo, high-end and multi-tasking PC users. The Intel 975X is Intel most high-end desktop chipset designed to support Intel next generation CPU, ATI CrossFire Graphics, maximum 8GB dual-channel DDR2 800/667/533 architecture, 1066/800 FSB (front-side-bus). Easily build an entertainment PC or create a multimedia environment with its exceptionally high bandwidth. Together with the Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 975X satisfies multi-task processing and data security.
LGA775 Intel® Quad-core Processor Ready
This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.
Intel LGA775 Pentium 4 CPU
This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800 MHz FSB, Hyper-Threading Technology, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date.
Intel® 65nm Dual-Core CPU support
This motherboard supports Intel Pentium D/Pentium 4/Celeron dual-core processors built on the 65-nanometer (nm) process technology with copper interconnect.
Intel® MPT (Intel® Memory Pipeline Technology)
The Intel® Memory Pipeline Technology (Intel MPT) delivers additional system-level performance by optimizing memory access between CPU and system memory, and allows increased performance at standard operating specifications.
ATI CrossFire Technology
ATI's CrossFire boosts image quality along with rendering speed, eliminating the need to crank down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire.
