内存参数
可支持内存时钟速度 |
1333, 1600 MHz |
支持UDIMM时钟速度 |
1333, 1600 MHz |
错误更正代码 |
Y |
DIMM插槽数量 |
4 |
支持的内存类型 |
DDR3-SDRAM |
内存通道支持 |
Dual |
支持UDIMM模组容量 |
2GB, 4GB, 8GB |
最大UDIMM内存 |
32 GB |
最大内部存储 |
32 GB |
内置输入/输出系统
串列ATA连接器数量 |
6 |
USB 2.0接口 |
1 |
ATX电源接头 |
Y |
TPM(可信任安全平台模组)接口 |
Y |
SATA III连接器数量 |
4 |
SATA II连接器数量 |
2 |
PS电源接口 (8针) |
Y |
机箱防盗接口 |
Y |
机箱风扇接头数量 |
5 |
串行端口接头连接器 |
2 |
处理器
可支持处理器数量 |
1 |
英特尔® 至强® 系列 |
E3-1200 |
处理器生产厂商 |
Intel |
扩展槽
PCI Express X 8(Gen 3.x)插槽 |
2 |
PCI 插槽 |
2 |
PCI Express x1(Gen 2.x)插槽 |
2 |
PCI Express X16(Gen 3.x)插槽 |
1 |
联网
局域网控制器 |
Intel I210AT |
无线局域网连接 |
N |
背板输出端口
PS/2连接埠数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
存储控制器
硬盘接口 |
Serial ATA II, Serial ATA III |
另外
主板晶片 |
Intel C224 |
系统总线 |
6 GT/s |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
5 |

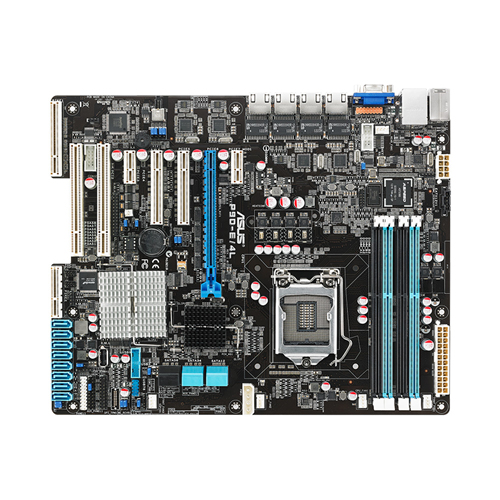

P9D-E/4L, LGA 1150, C224, 4 x UDIMM, 32GB DDR3, USB 3.0 / 2.0, SATA 6Gb/s, VGA, ATX
The most scalable PCI-E expandability, advanced I/O technology
The ASUS P9D-E/4L provides industrial leading 3 PCI Express 3.0 x8 slots and one ASUS PIKE support. Along with the ASUS technology, this board presents the most powerful PCI-E expandability ever in UP server boards.
The P9D-E/4L server board is built to support up to 4 USB 3.0 ports. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0.
Design to support legacy PCI device applications
Besides the latest PCI-E technology, P9D-E/4L keeps the legacy PCI slots on board which can fulfill various customers’ requirements. Customers can move their existing legacy PCI add-on cards to P9D-E/4L, and still benefit from up-to-date Intel Xeon E3-1200 v3 Processor Family and DDR3 memory technology to their solutions.
High power efficiency with premium components and digital power control
ASUS-exclusive Beat Thermal Chokes and new Dr. MOS (MOSFETs) improve the voltage regulator (VR) power efficiency. The Beat Thermal Chokes handle the pressure with ease, as a unique fin design results in around 4°C lower choke temperatures for added stability, which is increased exponentially by use of highly conductive and efficient gold-treated coating. This translates into minimal-loss power delivery. Besides, with proven stable circuit integrated, Dr. MOS optimizes switching performance.
Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable voltage.
The benefits from these components significantly increase P9D-E/4L VR power efficiency up to 94%.
Quad Intel I210AT Gigabit Ethernet
The ASUS P9D-E/4L ships with quad server-class Intel Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel 82574L controllers. This is better for virtualization applications. In addition, the quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server’s operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
SATA DOM (Disk on Module) ready
A SATA DOM is a flash drive simulating a hard disc which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. ASUS-exclusive design adds an onboard 4-pin power connector and USB header to make SATA DOM installation simple and easy.
Friendly Design for front I/O, front VGA
An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
