内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 支持UDIMM时钟速度 |
1333, 1600 MHz |
| 错误更正代码 |
Y |
| 支持UDIMM模组容量 |
2GB, 4GB, 8GB |
| DIMM插槽数量 |
2 |
| 最大内部存储 |
16 GB |
| 支持的内存类型 |
DDR3-SDRAM |
背板输出端口
| 串口数量 |
1 |
| PS/2连接埠数量 |
1 |
| DVI-I接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
设计
| 主板元件 |
Mini ITX |
| 组件应用 |
Server |
内置输入/输出系统
| ATX电源接头 |
Y |
| SATA II连接器数量 |
2 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
2 |
| SATA III连接器数量 |
2 |
| USB 2.0接口 |
1 |
处理器
| 可支持处理器数量 |
1 |
| 英特尔® 至强® 系列 |
E3-1200 |
| 处理器生产厂商 |
Intel |
| 可支持的处理器的核心数量 |
4, 2 |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
1 |
联网
| 无线局域网连接 |
N |
| 以太网接口类型 |
Gigabit Ethernet |
存储控制器
| 硬盘接口 |
Serial ATA III, Serial ATA II |
另外
| 主板晶片 |
Intel C222 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
LGA1150, Intel C222, 2x UDIMM DDR3 up to 16GB, PCI-E, Mini ITX, Aspeed AST2300
Optimized Computing and Management Power in Mini-ITX

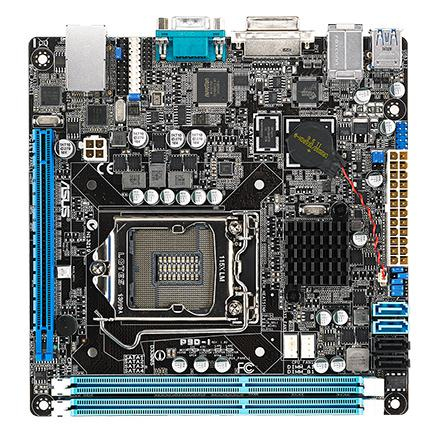

ASUS P9D-I is the mini-ITX form factor serverboard. Despite its diminutive appearance, the P9D-I retains the advantages of other P9D series motherboards including supporting the latest Intel® Xeon® E3-1200 v3 Processor Family with digital power solution and ASMB7 onboard. With the spacing saving advantage, P9D-I is exclusive to meet the diverse applications in small form factor servers, data center, front-end web server (web hosting) and etc.
Mini-ITX Compact Form Factor Increases Density
As a slim size serverboard, the 6.7” x 6.7” Mini ITX form factor of P9D-I fits for various small form factor appliance servers. In addition, P9D-I can be easily integrated in short depth chassis, thus P9D-I no doubt increases the density in a rack cabinet to provide higher computing power per rack than before.
Dual Intel® I210AT Gigabit Ethernet
The ASUS P9D-I ships with dual server-class Intel® Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel® 82574L controllers. This is better for virtualization applications. In addition, the dual LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic.
High power efficiency with digital power control
Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste and provides more stable voltage. P9D-I power efficiency reaches an impressive 92%.
Comprehensive server management: ASMB7-iKVM and ASWM Enterprise
The ASMB7-iKVM onboard enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB7 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface.
