处理器
| 处理器频率 |
1270 MHz |
| 图形处理器系列 |
AMD |
| CUDA |
N |
| 最大数字分辨率 |
5120 x 2880 pixels |
内存参数
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
256 bit |
| 内存时钟速度 |
6600 MHz |
| 独立显卡适配器內存 |
4 GB |
性能
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| PhysX |
N |
| 集成电视调谐器 |
N |
| Full HD |
Y |
| HDCP |
Y |
端口 & 界面
| DVI-D接口数量 |
2 |
| 接口类型 |
PCI Express 3.0 |
| DisplayPort 数量 |
1 |
| HDMI端口数量 |
1 |

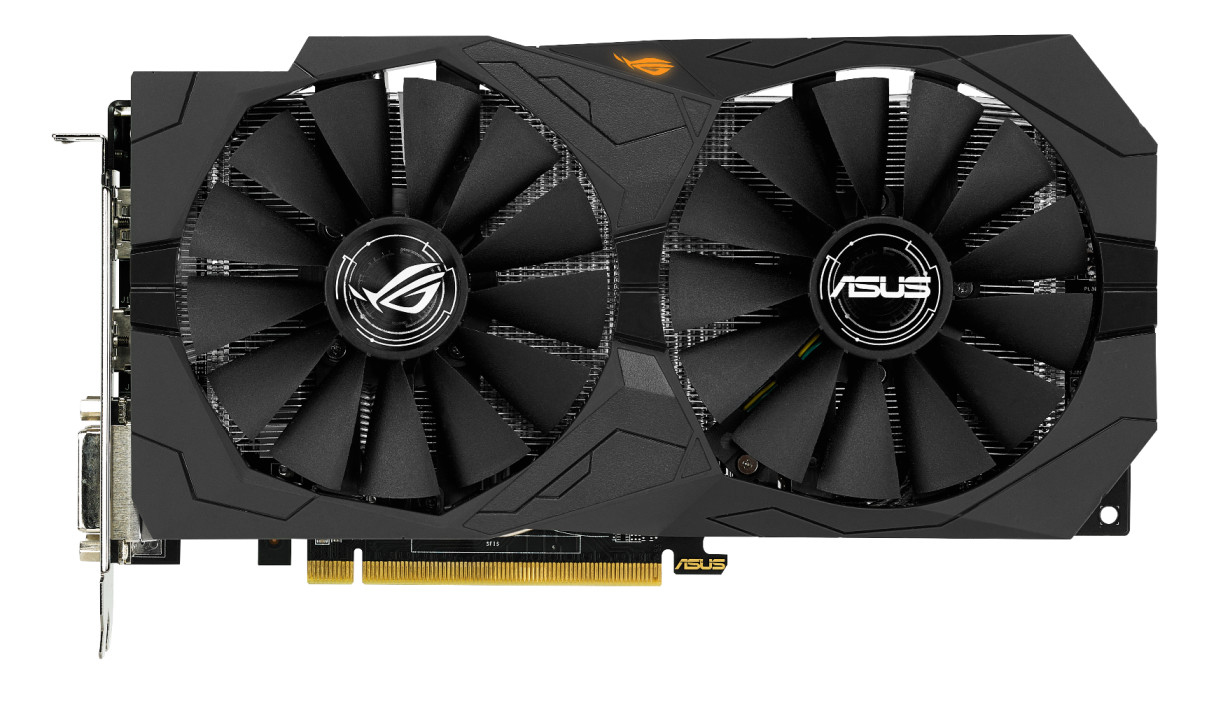

4GB GDDR5, 1250/1270MHz, 256-bit, 5120x2880, 2x DVI-D, HDMI, Display Port, PCI Express 3.0, Black
DirectCU II Technology with Direct-GPU Contact Heatpipes
30% Cooler and 3X Quieter Performance
Exclusive DirectCU II cooling technology features direct-GPU contact heatpipes that transports more heat away from the GPU and outperform reference designs, achieving up to 30% cooler gaming performance.
Patented Triple Wing-Blade 0dB Fans
Max Air Flow with 105% More Air Pressure
DirectCU II features dual 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU II the coolest and quietest graphics card in the market.
ASUS FanConnect
30% Cooler and 3X Quieter Performance
When gaming, GPU temperatures are often higher than CPU temps. However, chassis fans usually reference CPU temperatures only, which results in inefficient cooling of the system. For optimal thermal performance, ROG Strix RX 470 graphics cards feature a 4-pin GPU-controlled header that can be connected to system fan for targeted supplemental cooling.
PREMIUM QUALITY AND
BEST RELIABILITY
Auto-Extreme Technology
Industry-only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
5+1 Phase Super Alloy Power II
Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
