端口 & 界面
| VGA（D-SUB）端口数量 |
1 |
| 扩展插槽 |
1 x 64-bit PCI-X\n1 x 64-bit PCI-X |
| PS/2连接埠数量 |
2 |
| 串口数量 |
1 |
联网
| 网路功能 |
2 x Broadcom BCM5721 PCI-E Gb LAN |
处理器
| 处理器频率 |
3.6 GHz |
| 处理器高速缓存类型 |
L2 |
| 处理器高速缓存 |
2 MB |
其他功能
| 热插拔硬盘驱动器托架 |
4 x SCSI HDDs |
| 硬盘控制器 |
Adaptec AIC-7902 |
内存参数
| 最大内部存储 |
16 GB |
| 内存类型 |
DDR2-SDRAM |
认证标准
| 安全 |
TUV / CE, EN55022 / EEC |
另外
| 图形适配器 |
Rage XL |
| 主板晶片 |
Intel E7520 |
| 以太网路(RJ-45)连接接口数量 |
2 |
RS160-E3/PS4 - dual core Intel® Xeon™ processors FSB800MHz EM64T 1/2M L2 cache 3.6 GHz, Intel® E7520, Intel® ICH5R, Intel® 6700PXH chipsets, 8 x DDR2 400

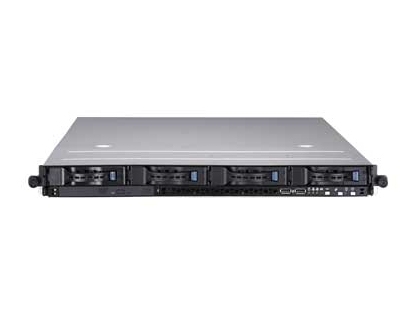

1U Performance Dual Core Xeon™ Server with High Expandability
RS160-E3/PS4 is based on Intel® dual core Xeon™ 800MHz FSB processor platform. With support of EM64T technology, 64-bit OS, ECC DDR2 memory, and dual PCI-Express Gigabit LAN, RS160-E3/PS4 delivers powerful functions for customers.
RS160-E3 / PS4 is based on Intel® dual core Xeon™ 800MHz FSB processor platform. With support of EM64T technology, 64-bit OS, ECC DDR2 memory, and dual PCI-Express Gigabit LAN, RS160-E3 / PS4 delivers powerful functions for customers.
Leading-edge Performance Ready
- EM64T technology provides effective and painless way to enjoy 64bit computing capability
- 8 DDR2-400 memory slots provides higher performance/bandwidth, and more memory capacity to meet critical computing environment needs
Reliable & Cost-effective Data Protection
- Hot-swap design lowers maintenance downtime
- HostRAID provides affordable RAID 0, 1, 0+1 support
Dual Server Class PCI-Express Gb LAN
- Broadcom® PCI-Express Gb LAN provides most professional server network connection solution
- Teaming and failover function enables higher bandwidth aggregation and reliable network connection
1U Server with 2 Expansion Slots:
- Great expansion capability is reserved for 2 add-on PCI-X cards to meet different applications
Considerate Mechanical Designs & Tool-less, Thumbscrew Service Label
- Lower service downtime and save engineer’s effort in system maintenance
- Provide easy and quick guidance for engineers
