端口 & 界面
| VGA（D-SUB）端口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 串口数量 |
1 |
认证标准
| 遵守工业标准 |
IEEE 802.3ab/802.3u/802.3 |
| 安全 |
CE, EN55022, 89/366/EEC, TUV |
存储介质
| 硬盘接口 |
Serial ATA |
| RAID支持 |
Y |
| 支持的硬盘数量 |
4 |
| 热插拔 |
Y |
| 硬盘尺寸 |
3.5 " |
内存参数
| 最大内部存储 |
32 GB |
| 内存插槽数量 |
6x DIMM |
| 错误更正代码 |
Y |
| 内存类型 |
DDR3-SDRAM |
扩展槽
| PCI Express x8插槽 |
1 |
| PCI Express x16 插槽 |
1 |
另外
| 以太网连接器 |
Y |
| 图形适配器 |
AST2050 |
| 主板晶片 |
Intel 3420 |
| 以太网路(RJ-45)连接接口数量 |
3 |

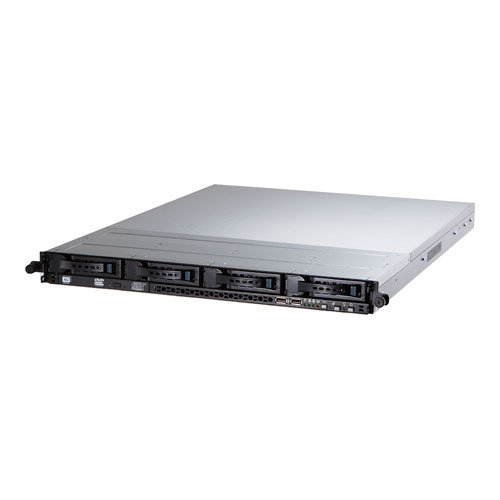

RS300-E6/PS4, Intel 3420 PCH, Gigabit Ethernet
Green Server with High Expandability & Upgradability
Support Up-to-date Intel CPU
The RS300-E6/PS4 is built with LGA Socket 1156, support 45nm Quad Core UP CPU and dual-channel DDR3-1333, and it is also designed ready for next-gen 32 nm Dual Core UP CPU to allow effortless migration to Intel’s new platform and therefore prolong your investment. The ASUS proprietary CPU heat-pipe will deliver high thermal performance for stable computing applications.
High I/O Expandability
The RS300-E6 supports 2+1 I/O expansion slots in the 1U chassis, including one PCI-E x8 slot to support low-profile/half-length card, one PCI-E x16 slot to support full-height/half-length card, and another slot designed for ASUS optional PIKE card, which brings seamless upgrade to SAS storage and RAID protection.
Green Design with 80+ PSU & Intelligent Fan Control
With current trends leaning towards power efficiency, the RS300-E6/PS4 is equipped with 80+ PSU to reduce the power loss and power consumption, and save power bill for users. The ASUS intelligent FAN technology will optimize the total FAN power and acoustic level to create a pleasant working environment for customers.
Optional ASUS PIKE for Demand on Upgradability
In order to upgrade from SATA storage to SAS directly, ASUS recommends customers to use its optional PIKE Upgrade Kit, which is compatible with Intel® XEON 5500 & 3400 Series platform products. With PIKE, slim-sized and flexible storage options for customers can be achieved when upgrading directly to SAS RAID with multiple I/O solutions, without sacrificing expansion capabilities. Now maximize your I/O performance and data protection in second!
Remote Management Solution – ASUS ASMB4 iKVM
The optional ASMB4-iKVM upgrade kit provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Save Effort with Auto-install CD
With the auto-install support CD, you don’t need to wait and click “next” step by step, as the user’s preferences are pre-configured in the CD. As well, the correct device drivers have been installed properly, and it’s not necessary to update device drivers in OS, which will save time and effort of MIS.
