端口 & 界面
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
存储介质
| 控制器接口类型 |
ICH10R |
| 热插拔硬盘驱动器托架 |
Y |
| 支持的硬盘数量 |
8 |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI Express x8插槽 |
1 |
内存参数
| DIMM插槽数量 |
12 |
| 支持的内存类型 |
DDR3-SDRAM |
| 支持的DIMM大小 |
16GB, 1GB, 2GB, 4GB, 8GB |
| 最大UDIMM内存 |
48 GB |
| 最大内部存储 |
192 GB |
联网
| 网路功能 |
Gigabit Ethernet |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
另外
| 主板晶片 |
Intel 5500 |
| 图形适配器 |
AST2050 |
| 以太网路(RJ-45)连接接口数量 |
3 |

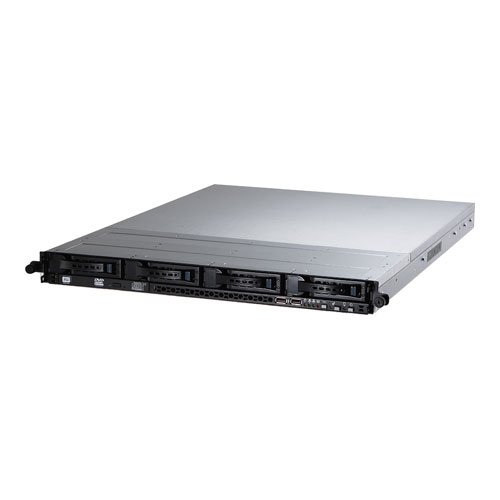

RS500-E6/PS4 - 2 x Socket LGA1366, 12x DIMM, 192GB RDIMM/48GB UDIMM max, 1 x PCI-E x16, 1 x PCI-E x8, 2 x Intel 82574L + 1x Mgmt LAN, Aspeed AST2050, 600W, 15Kg, silver/black
Mainstream High Speed 1U Computing Node
Mass Storage Capacity with Complete RAID Solution
RS500-E6/PS4 has four 3.5” hot-swap HDD bays to support SATA or SAS HDDs up to 4TB, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices.
Optimal 1U Placement & Multiple I/O Expandability
Optimal front “Parallel-Balance” design not only provides effective cooling for the system but also makes support of two Full-Height I/O expansion cards available.
RS500-E6/PS4 provides default expansion solution as 1 PCI-E G2 x16 (x8 link) slot and 1 PCI-E G2 x8 (x8 link) slot for high speed connection.
80+ System Power Efficiency
With 80+ PFC high efficiency power supply, RS500-E6/PS4 is able to reduce the power loss and power consumption, and save power bill for users, which can be a large deal for 7x24 hour non-stop servers. The EPU (Energy Processing Unit) engine will provide optimal and effective CPU power management.
Virtualization Support
The onboard vertical USB connector for VMware ESXi supports virtualization application in RS500-E6/PS4. Virtualization not only improves the server’s utility rate and manageability, but also reduces hardware cost and power consumption for customers.
High Quality Components
The ASUS 6-Phase power and 3-Phase memory power design reduces input ripple current and output ripple voltage, which keeps CPUs and power modules from suffering the risk of high power stress. All Japan-made 5000hr ultra durable conductive polymer capacitors onboard provide durability, improved lifespan, and enhanced thermal capacity.
