联网
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
| 网路功能 |
Gigabit Ethernet |
端口 & 界面
| VGA（D-SUB）端口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 串口数量 |
1 |
存储介质
| 热插拔硬盘驱动器托架 |
Y |
| 控制器接口类型 |
ICH10R |
| 支持的硬盘数量 |
8 |
内存参数
| 最大RDIMM内存 |
96 GB |
| 最大UDIMM内存 |
48 GB |
| 支持的DIMM大小 |
8GB, 4GB, 2GB, 1GB, 16GB |
| DIMM插槽数量 |
12 |
| 支持的内存类型 |
DDR3-SDRAM |
扩展槽
| PCI Express × 4插槽 |
1 |
| PCI Express x8插槽 |
2 |
另外
| 图形适配器 |
AST2050 |
| 主板晶片 |
Intel 5520 |
| 以太网路(RJ-45)连接接口数量 |
3 |

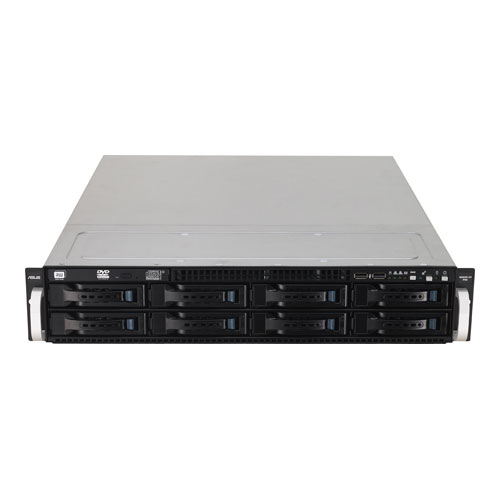

RS520-E6/ERS8 - 2 x LGA1366, Intel 5520 IOH, 12 x DIMM, 2 x PCI-E x8, 1 x PCI-E x4, 6 x SATA2 300MB/s, RAID 0/1/5/10, 8 x 3.5'' HDD H/s, Gigabit Ethernet, AST2050 8MB, 4 x USB 2.0, 2 x QSFP, 770W, 22kg, black/silver
<b>2U Storage Server for Enterprise Applications</b>
<b>Mass Storage Capacity & Complete RAID Solution</b>
RS520-E6/ERS8 has eight 3.5” hot-swap HDD bays to support SATA or SAS HDDs, meeting the demand of mass storage. The hot-swap design is reliable for 7x24 non-stop services. With ASUS optional PIKE upgrade kit, the server is able to provide flexible RAID choices.
<b>Flexible I/O Expansion Choices</b>
Catering to different demands of users, RS520-E6/ERS8 is equipped with three PCI-Express expansion slots, two of which support Full-Height/Full-Length PCI-E G2 card.
<b>High Availability for Mission Critical Enterprise applications</b>
The RS520-E6/ERS8 is built with hot-swap 1+1 redundant power supply to provide better reliability and eliminate the risk of downtime caused by power supply. In addition, the HDD bays are also hot-swappable for easy maintenance.
<b>Power-saving Solution</b>
With 80+ PFC high efficiency power supply, RS520-E6/ERS8 is able to reduce the power loss and power consumption, and save power bill for users, which can be a large deal for 7x24 hour non-stop servers. The EPU (Energy Processing Unit) engine will provide optimal and effective CPU power management.
<b>Virtualization Support</b>
The onboard vertical USB connector for VMware ESXi supports virtualization application in RS520-E6/ERS8. Virtualization not only improves the server’s utility rate and manageability, but also reduces TCO for customers.
<b>Real-time and Out-of-band Server Management</b>
The optional ASMB4-iKVM module offers real-time web-based management and remote system control (KVM-over-IP) with a single local computer.
