处理器
| 可支持处理器数量 |
2 |
| 英特尔® 至强® 系列 |
E5-2600 |
内存参数
| DIMM插槽数量 |
16 |
| 支持的内存类型 |
DDR3-SDRAM |
| 支持的DIMM大小 |
16GB, 1GB, 2GB, 4GB, 8GB |
| 最大UDIMM内存 |
128 GB |
| 最大RDIMM内存 |
512 GB |
| 最大内部存储 |
512 GB |
联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 网路功能 |
Gigabit Ethernet |
存储介质
| 支持的硬盘驱动器大小 |
3.5 " |
| 支持存储驱动器界面 |
SAS |
| 热插拔硬盘驱动器托架 |
Y |
| 支持的硬盘数量 |
12 |
端口 & 界面
| PS/2连接埠数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 主板晶片 |
Intel C602 |
| 图形适配器 |
AST2300 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
5 |

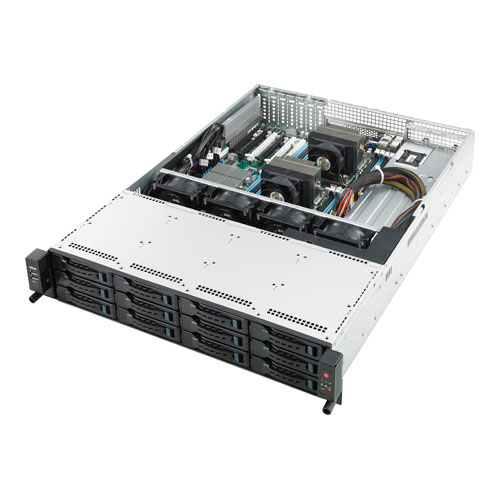

RS720-E7/RS12-E, 2x Socket 2011, Intel Xeon processor E5-2600, QPI 6.4 / 7.2 / 8.0 GT/s, Intel C602-A, 12x 3.5" Hot-Swap HDD Bays, 16x DIMM DDR3, Maximum up to 512GB RDIMM, Aspeed AST2300 with 16MB VRAM, 2U
Mass Storage Capacity in a 2U Chassis
The RS700-E7/RS12 is built with 12 SAS/SATA 2.5”/3.5” hard drive bays to support up to 36TB storage capacity. The hot-swappable design provides non-stop high availability, with easy maintenance and servicing.
6+1 Expansion
The RS720-E7/RS12 has high expandability with six expansion slots, including two PCI Express 3.0 x16 slots (x8 link) or one PCI Express 3.0 x16 slot (x16 link), three PCI Express 3.0 x16 slots, and one PCI Express 3.0 x16 slot (x8 link), meeting the demands of future expansion. In addition, a dedicated slot for ASUS PIKE SAS RAID upgrade kits is included.
Up to 92% Power Efficiency
The use of 1+1 redundant 770W 80Plus Gold power supplies offers high power efficiency for HPC applications. Also hot-swappable, power supplies can be serviced individually without shutting down the server.
Quad LAN Support
Quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. The server supports ASUS-made and most market-available 10Gb LAN cards for fast networking.
Comprehensive RAID
The RS720-E7/RS12 supports ASUS RAID PIKE RAID Solution. Users may upgrade the server from SATA to SAS storage by re-connecting the cable from the onboard SATA to the PIKE riser card’s SAS port, creating multiple storage options!
Complete Remote Server Management
By installing an optional web GUI-based ASMB6-iKVM module, users get full control of the server with out-of-band management (IPMI 2.0 standard) and 24/7 real-time remote monitoring. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flashing, remote control, power control, and asset management through a user-friendly interface. This gives users an effective tool for remote server management.
