端口 & 界面
串口数量 |
1 |
串列ATA连接器数量 |
6 |
IPMI LAN端口(RJ-45) |
Y |
PS/2连接埠数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
内存参数
支持UDIMM时钟速度 |
1066, 1333 MHz |
内存格式因素 |
240-pin DIMM |
DIMM插槽数量 |
32 |
错误更正代码 |
Y |
支持的内存类型 |
DDR3-SDRAM |
支持的DIMM大小 |
1GB, 2GB, 4GB, 8GB |
支持RDIMM时钟速度 |
800, 1066, 1333, 1600 MHz |
最大UDIMM内存 |
256 GB |
最大RDIMM内存 |
1024 GB |
最大内部存储 |
1024 GB |
处理器
可支持处理器数量 |
4 |
英特尔® 至强® 系列 |
E5-4600 |
环境条件
电磁辐射 |
CE, EN55022 & EN55024 |
安全 |
CE, EN55022 EU Directive 89/366/EEC |
扩展槽
PCI Express x16 插槽 |
4 |
PCI Express x8插槽 |
2 |
PCI Express插槽版本 |
2.0, 3.0 |
联网
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
局域网控制器 |
Intel I350AM4 |
网路功能 |
Quad Gigabit Ethernet |
能量控制
支持冗余电源供给数量 |
2 |
主电源数量 |
2 |
冗余电源供给设置数量 |
2 |
电源 |
1620 W |
电源类型 |
Platinum |
存储介质
支持的硬盘驱动器大小 |
3.5 " |
支持存储驱动器界面 |
SAS, Serial ATA, Serial ATA II, Serial ATA III |
热插拔硬盘驱动器托架 |
Y |
支持的硬盘数量 |
8 |
另外
主板晶片 |
Intel C602 |
系统总线 |
8 GT/s |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
4 |

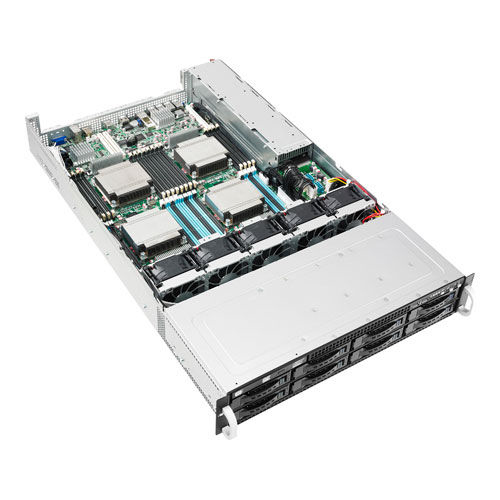

RS920-E7/RS8, 4 x Socket 2011 Intel Xeon E5-4600 Series, Intel C602-A, 32 x DIMM DDR3, Aspeed AST2300 16MB VRAM, 8 x Hot-swap 3.5", 2 x SATA III, 4 x SATA II, Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN, 2U
Quad CPUs and 7 expansions up to 2 GPUs support.
The new ASUS RS920-E7/RS8 server is based the latest Intel® server platform, using 4-way Xeon® Romley-EP 4S processors. Equipped with 32 DIMM slots, eight hot-swap hard drives, 6+1 expansion slots, and 1+1 redundant power supplies, it lays a great foundation for data centers, HPC, and enterprise applications that require outstanding performance, supercomputing capabilities, and high reliability.
Outstanding computing with Quad CPUs and Dual GPUs.
The RS920-E7/RS8 delivers outstanding performance with up to four new Intel® Xeon® E5-4600 processors, which together offer a max 32 computing cores in a 2U system. The 32 DDR3 DIMM slots support up to 1024GB (RDIMM) memory. Furthermore, support for two double-deck graphics cards provides extreme video processing capabilities.
Enhanced reliability, better efficiency, and improved serviceability.
Quad Intel® Gigabit LAN ports optimize load balance and fault tolerance functions, while hot-swap hard drive trays enable easy maintenance and upgrades. In addition, the 1+1 redundant 1620W 80 PLUS Platinum power supplies provide up to 94% power efficiency, by that combining easy maintenance with significant cost savings, making the server both power-saving and easy to maintain.
Exclusive ASUS PIKE upgrade kit.
To improve storage capacity, the RS920-E7/RS8 supports SATA and SAS hard drives to offer users integrated RAID Solution – PIKE for better data protection. The optional ASUS PIKE SAS2 6G upgrade kit provides a cost-effective storage interface upgrade, for more flexible storage options.
Quad LAN with Gigabit high performance.
The quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by enhancing virtualized traffic.
Integrated server remote management.
With the web GUI-based ASMB6-iKVM module, users can fully control the server with out-of-band management using the IPMI 2.0 standard, achieving 24/7 real time remote monitoring. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, power control, and asset supervision, all through a user-friendly interface.
