以太网LAN特性
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
其他功能
| 最大数据传输率 |
1 Gbit/s |
| 接口 |
LAN, WAN |
| 带宽 |
2.4835 GHz |
| 接受频率 |
50/60 Hz |
| 机架安装 |
N |
| 网路功能 |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| 输入电压 |
110 - 240 V |
| USB 端口数量 |
1 |
| 频率范围 |
2400 - 24835MHz |
协议
| DMZ支持 |
Y |
| 动态主机配置协议客户 |
N |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
WAN PPPoE, PPTP, L2TP |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
300 Mbit/s |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
联网
| 管理协议 |
UPnP, IGMP v1/v2/v3, DNS Proxy, NTP Client, DDNS |
管理功能
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 网上管理 |
Y |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |
300Mbps Wireless-N Gigabit Router, 4 SSID, AP, Repeater, Wall-mount Design, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4; Internal 3dBi antenna x 2, 2.4 - 2.4835GHz; 1x RJ45 10/100/1000/Gigabits BaseT WAN, 4x RJ45 10/100/1000/Gigabits BaseT LAN, 1x USB 2.0
- Stylish & Fast Router: Black-diamond design & fast Gigabit Ethernet.
- Various USB Applications: Printer, FTP server & UPnP Streaming.
- Friendly User Interface: 3-step Installation with easy setting.
- Multiple SSID: Easily manageable net bandwidth with 4 sets of SSID.
- 3-in-1 Funtion: Switch Between Router, AP & Repeater Mode Freely.

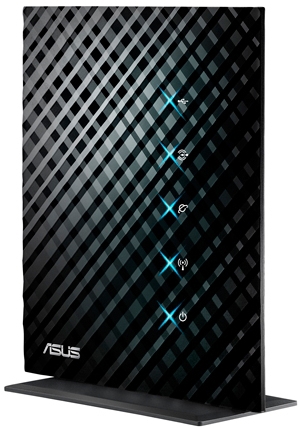

ASUS RT-N15U brings you the best experience of home and SOHO networking with fast 300Mbps data rate and stable Gigabit connection. Plug and surf with no CD installing at all. The unique user interface enables user to access it in a much more easy way. The versatile USB application also supports all-in-one printer, FTP server, and UPnP streaming, enriching the wireless environment completely.
With its Black-diamond outlook & Gigabit Ethernet, this is a stylish and superbly fast router
With the black-diamond shaped pattern and blue star LED, RT-N15U is not only a wireless router but an ornament at home. It is also equipped with gigabit fast Ethernet, letting users experience the best performance in both appearance and throughput.
Various USB Applications: Printer, FTP server & UPnP Streaming
With more and more current devices equipped with wireless capability, users can now enjoy different functions without the limitation of space through wireless connection. User can also now use the versatile USB application such as wireless printing, FTP server, and UPnP multimedia streaming while setting up a wireless connection solution throught out right at home.
User-friendly User Interface: 3-step Installation & Easy Setting
ASUS creates the most user-friendly user interface for installing and setting. With the simple graphic network UI, users can easily setup and start surfing the internet. Setting up a wireless router for home network has never been that easy.
Multiple SSID
RT-N15U provides up to four wireless networking with dynamic bandwidth management. High bandwidth for top priority and full access while basic internet access for normal guests. This flexibility further enchance easy to configure networking management for office or SOHO user.
3-in-1 Funtion: Switch between Router, AP & Repeater Mode freely
With three differnet modes supported, users can easily switch between router, AP, and repeater for different functions need. With RT-N15U user can now create three complete networking access with the need of only one router.
