性能
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.4 |
| HDCP |
Y |
| 集成电视调谐器 |
N |
| PhysX |
Y |
端口 & 界面
| 接口类型 |
PCI Express 3.0 |
| HDMI端口数量 |
1 |
| DVI-I接口数量 |
1 |
| DisplayPort 数量 |
1 |
| DVI-D接口数量 |
1 |
内存参数
| 独立显卡适配器內存 |
4 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
256 bit |
| 内存时钟速度 |
7010 MHz |
处理器
| 图形处理器系列 |
NVIDIA |
| 处理器频率 |
1114 MHz |
| 处理器提高时钟速度 |
1253 MHz |
| CUDA |
Y |

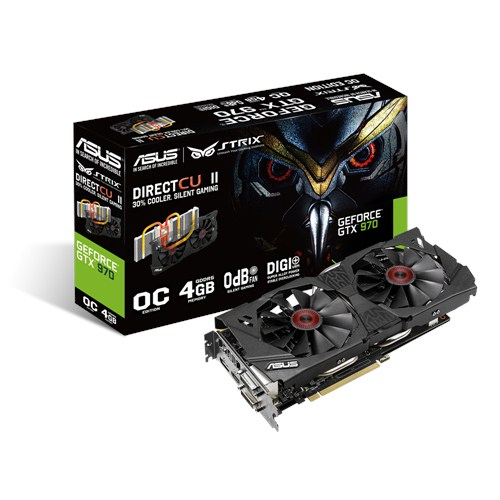

NVIDIA GeForce GTX 970 4GB GDDR5, DVI, HDMI, Display Port, HDCP
Taken from the ancient Roman and Greek word for owl, Strix means the keenest hearing and sharpest eyesight. Strix means feeling your environment so that you detect and react to the slightest movement. Strix means survival on the very edge of instinct. Strix is in your blood, as it is in ours.
ASUS Strix GTX 970 gaming graphics card is factory-overclocked at 1253 MHz and packed with exclusive ASUS technologies, including DirectCU II to deliver cooler, quieter, and faster performance for incredible action gaming experiences. Strix GTX 970 also features 0dB fan technology to let gamers enjoy total silence during light gameplay as well as Blu-ray movie playback free from distracting background noise. Strix GTX 970 features exclusive ASUS DIGI+ VRM with 6-phase Super Alloy Power components for enhanced durability and cooling, and GPU Tweak for overclocking and online streaming.
<b>DirectCU II with 0dB Fan Technology</b>
<b>30% cooler. Silent gaming.</b>
Exclusive DirectCU II cooling technology outperforms reference designs with an exclusive 10mm heatpipe that transports 40% more heat away from the GPU — a first for the industry! The design also includes 220%-larger heat-dissipation: this means performance that's 30% and three-times (3X) quieter than reference for ultra-stable hardcore gaming with very low noise. And Strix ups the ante still further with 0dB fan technology that lets you enjoy games like League of Legends® and StarCraft® in complete silence — because the fan stops completely when the GPU temperature remains below a set level.
<b>DIGI+ VRM with Super Alloy Power</b>
<b>30% less power noise and 2.5X greater durability</b>
Acclaimed DIGI+ VRM has been applied via a 6-phase power design that uses digital voltage regulators to minimize power noise by 30%, enhance power efficiency by 15%, widen voltage modulation tolerance, and improve overall stability and longevity by 2.5 times over reference.
<b>GPU Tweak with Streaming</b>
<b>Real-time intuitive graphics tuning</b>
- Shows detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time detailed multi-parameter info
- Automatically checks and updates drivers and BIOS versions
<b>Stream online instantly</b>
GPU Tweak streaming tool that lets you share on-screen action in real time – so others can watch live as games are played. It's even possible to add to the streaming window scrolling text, pictures and webcam images.
