端口 & 界面
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 串列ATA连接器数量 |
3 |
| 并行ATA连接器 |
1 |
| 处理器安装数量 |
1 |
| 驱动器托架 |
2x 3.5"; 1x 5.25" |
| 专用功能部件 |
Intel AFSC \nCrash Free BIOS2 \nEZ Flash \nMy Logo2 \nASUS PC ProbeII \nVista Ready |
| 扩展插槽 |
1x PCI\n1x PCI-e x16 |
内存参数
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
8 GB |
另外
| 主板晶片 |
Intel G965 Express |
| 以太网路(RJ-45)连接接口数量 |
1 |

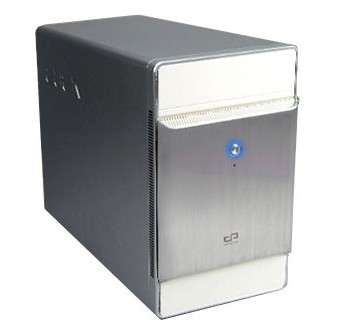

The first Broadwater BTX Platform
As the first Broadwater BTX Platform, T3-P5G965 supports the latest Intel CPU – Conroe. T3-P5G965 provides impeccable performance with low power consumption.
Powerful media Performance
T3-P5G965 supports FBS 1066MHz of Intel LGA775 CPU (the most advanced CPU Conroe of Intel), and builds 2D/ 3D GPU and 8 Channel Codec inside, not only increase your working efficiency, but also meet your nitpicking demand for graphic and sound at the same time.
Considerate Sliding Door Design
The sliding panel, designed by ASUS professional ID teams, hides the front I/O gracefully and leads PC in the design direction of new generation with fashion and succinct style.
Exciting Gaming Experience:
The compact size of T3-P5G965 can support powerful VGA card to enjoy extreme gaming and joyful multimedia.
Unique E-SATA Technology
The speed is 5 times higher than normal external HD.
Swivel Chassis Design and Clean Cable Mangement:
Because of the flip-over chassis design & nice cable management, it's very easy to instal and repair the PC.
Smart PCB Module Design:
Intergrated several I/O parts into one PCB card and the PCB card can be slotted into the main board without any connection by cables. It's easy for repairing and testing.
Recover Pro- Your Files are in Good Hands
No need to worry about losing your data due to virus attacks anymore! T3-P5G965 is equipped with the Recover Pro software that assures dynamic and continuous data protection. It automatically creates multiple restore points for easy file recovery even without booting OS.
