内存参数
| 错误更正代码 |
Y |
| 内存类型 |
DDR3-SDRAM |
| 最大内部存储 |
16 GB |
| 内存插槽数量 |
4x DIMM |
扩展槽
| PCI Express x8插槽 |
1 |
| PCI Express × 1插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
3 |
存储介质
| 硬盘尺寸 |
3.5 " |
| 硬盘接口 |
Serial ATA II |
| RAID支持 |
Y |
| 支持的硬盘数量 |
4 |
端口 & 界面
| 串口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| PS/2连接埠数量 |
2 |
认证标准
| 遵守工业标准 |
IEEE 802.3ab/802.3u/802.3 |
| 安全 |
CE, EN55022, 89/366/EEC |
另外
| 以太网路(RJ-45)连接接口数量 |
2 |
| 以太网连接器 |
Y |
| 主板晶片 |
Intel 3420 |
TS100-E6/PI4, Intel 3420 PCH, Quad Core Intel Core i5-700, DDR3, SATA II, Gigabit Ethernet, XGI Z9s, 300W

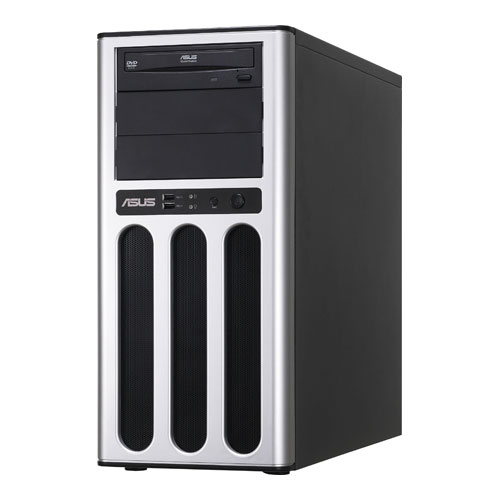

TS100-E6/PI4
Super-quiet & Dual Use UP Server for SMB Applications
TS100-E6/PI4 is a single-socket tower server based on Dual-Core/ Quad-Core Intel® 3400 series processor and Intel® 3420MCH chipset, which provides immediate performance scale up and high expandability and upgradability.
Support Up-to-date Intel® CPU
The TS100-E6/PI4 is built with LGA Socket 1156, support 45nm Quad Core UP CPU and dual-channel DDR3-1333, and it is also designed ready for next-gen 32 nm Dual Core UP CPU to allow effortless migration to Intel’s new platform and therefore prolong your investment.
Ultra-Quiet & Energy-saving Features
Strict acoustic tests have shown that the TS100-E6/PI4 performs excellently in acoustic control (under 25.1 dBA in idle mode) – much lower than that of a projector (42dB), and facilitates customers who requires quiet working environment. The TS100-E6/PI4 is equipped with 80+ PSU to reduce the power loss and power consumption, and save power bill for users.
Dual Use as Server & Workstation
The TS100-E6/PI4 provides 1 PCI-E G2 x 16 link slot to support VGA card, and allowing the customers to use it as a workstation. In addition, the optional MIO audio card will offer great sound quality to complement the robust video power—offering enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional and entertainment usage.
Save Effort with Auto-install CD
With the auto-install support CD, you don’t need to wait and click “next” step by step, as the user’s preferences are pre-configured in the CD. As well, the correct device drivers have been installed properly, and it’s not necessary to update device drivers in OS, which will save time and effort of MIS.
