处理器的特殊功能
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®中小企业通锐软件(SBA) |
Y |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®64 |
Y |
| 英特尔® 清晰视频技术 |
Y |
| 英特尔®智能响应技术 |
Y |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
2.0 |
| 英特尔®安全密钥 |
Y |
| 英特尔® 我的WiFi技术 |
Y |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®TSX-NIi |
N |
| 英特尔® OS Guard 操作系统保护 |
Y |
| 英特尔®无线显示(WiDi)技术 |
Y |
| 英特尔®清晰视频高清技术 |
Y |
| 英特尔® Flex内存访问 |
Y |
处理器
| 散热设计功耗 (TDP) |
15 W |
| 核心的处理器数量 |
2 |
| 内置处理器 |
Y |
| 处理器频率 |
2.70 GHz |
| 处理器加速频率 |
3.50 GHz |
| 处理器光刻 |
14 nm |
内存参数
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 最大内部存储 |
32 GB |
| 可支持内存时钟速度 |
2133 MHz |
存储介质
| 兼容性内存条 |
SD, SDHC, SDXC, MMC |
| 光驱类型 |
N |
| 集成读卡器 |
Y |
端口 & 界面
| 麦克风/音频输入插孔 |
N |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| DC-IN插口 |
Y |
| DVI端口 |
N |
| 组合耳机/麦克风接口 |
Y |
另外
| InTru™3D技术 |
Y |
| 图形适配器 |
HD Graphics 620 |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel Core i7-7500U (4M Cache, 2.7GHz), Up to 32 GB DDR4 2133MHz, Intel HD Graphics 620, Ethernet, no OS
Desktop performance, miniaturized.

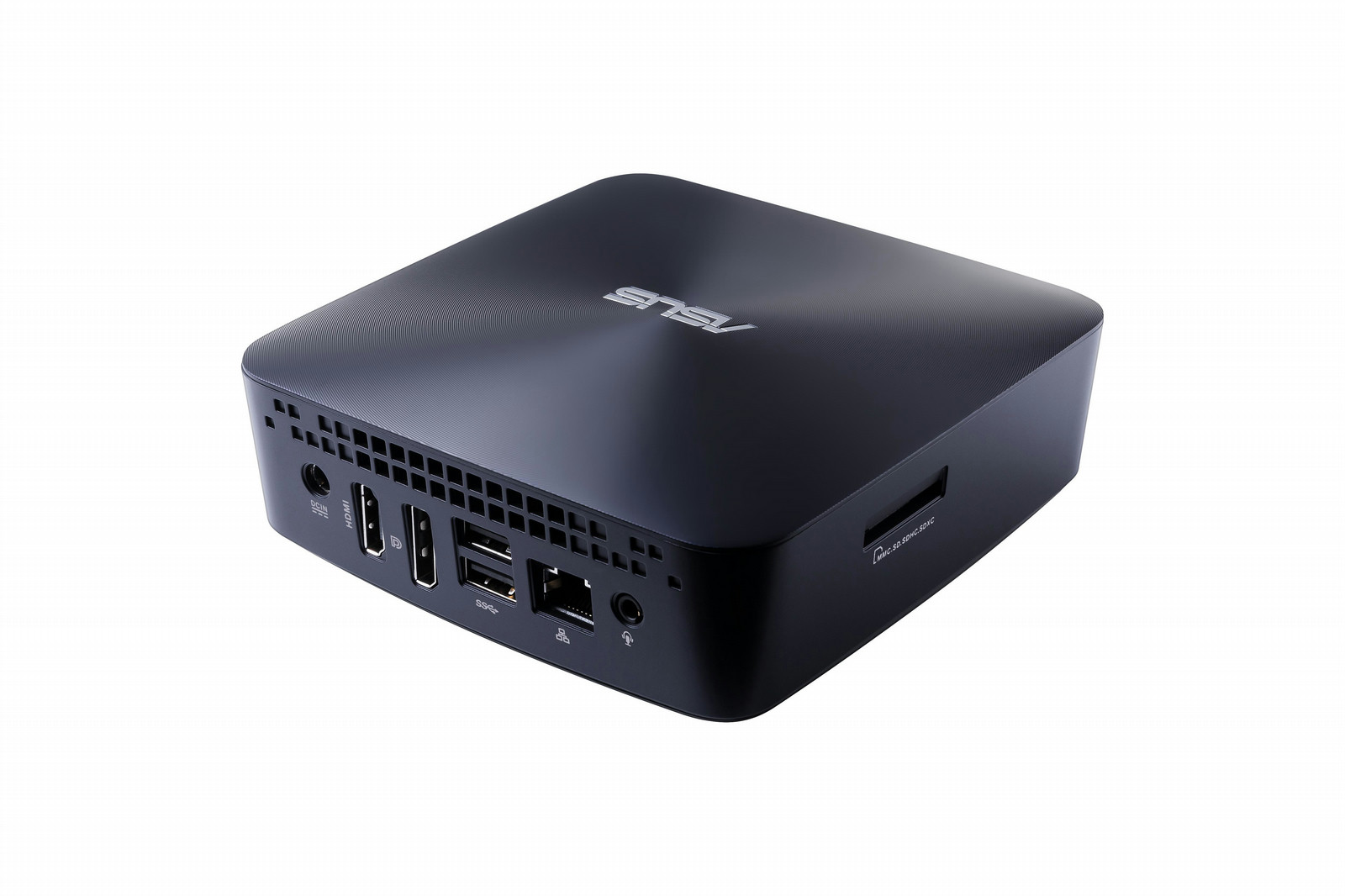

ASUS VivoMini UN65U packs the solution for all of your home computing needs into a lightweight mini PC that's only slightly thicker than the average wallet. The UN65U is powered by the latest 7th generation Intel® Core™ i7 processor and features a dual-storage design for added flexibility, as well as a M.2 SSD for data speeds of up to 10Gbps. The UN65U is a quiet performer that keeps noise levels down, thanks to an optimized low-speed fan design.
The UN65U provides incredible 4K UHD on one display or HD support across three displays*, making multitasking enjoyable and effortless. With 802.11ac Wi-Fi and the exclusive ASUS Media Streamer and Remote Go! apps, the UN65U is an ideal home entertainment PC and the best mini PC to connect to a HDTV.
Elegantly-crafted for the home
Good Design Award-winning VivoMini UN65U is crafted for the home, with an elegantly-crafted chassis with smooth rounded edges and compact dimensions measuring just 131 x 131 x 52mm. VivoMini UN65U is finished in glossy Midnight Blue and features the iconic Zen-inspired spun-metal-effect design – making it a striking addition to any room of the house. It can be VESA-mounted on the back of a display too, so you can create your own custom all-in-one PC for a tidy, clutter-free environment.
One size fits all
Whether you're looking for a personal PC, a home entertainment center, or media library, VivoMini UN65U delivers desktop-level performance and can be customized for your family's home computing needs.
Exceptional performance with life-like graphics.
Intel Core i7 processors and 4K UHD visuals
VivoMini UN65U is available with the latest 7th Generation Intel Core i7, i5 or i3 processor for seamless multitasking and incredible energy efficiency. The Intel processors used in the UN65U deliver a 12% increase in performance versus previous-generation processors*.
VivoMini UN65U provides exceptional 4K UHD visuals. It is ideal for a home theater set-up, allowing you to browse the web and watch movies in stunning clarity.
Multi-display productivity
VivoMini UN65U works with any display, HDMI TV, or projector to give you a multitude of display options, and is even able to wirelessly stream content to maximize your computing experience. It supports up to three independent displays though HDMI and DisplayPort++ to give you more onscreen space for multi-tasking. Now you can spread out your various work windows, mirror content, or extend a single window across multiple displays.
Flexible dual-storage design
VivoMini UN65U features a dual-storage design that you can specify with up to a 2.5-inch 1TB hard disk or 512GB solid state drive (SSD), a 512GB M.2 SSD, or a combination of both for added flexibility. So whether you're after larger storage capacities to store your music, videos, photos, apps and other data; or faster data access speeds, you can mix and match between hard disk and SSD options to better suit your needs.
Blazing-fast speeds with M.2
Native M.2 support gives VivoMini UN65U the speed and performance you crave in a compact PC. A PCI Express® SSD* gives you data transfer speeds of up to 10Gbit/s – making it the perfect choice for an operating system or application drive so you spend less time waiting and more time getting work done.
Quiet operation
ASUS VivoMini UN65U operates in remarkable silence thanks to optimized low-speed fan settings that keep noise levels down to just 23dB at idle, the same as the sound made by falling leaves. And it doesn't get much noisier at full load either – generating just 38dB of noise, or 36% below the industry standard. It sits quietly in the background, allowing you to enjoy your music and movies uninterrupted.
Stream and share content with full media controls
802.11ac Wi-Fi, together with the exclusive ASUS Media Streamer and Remote Go! apps, let you stream content or control VivoMini remotely. VivoMini UN65U comes with 100GB of ASUS WebStorage free for one year, so you can safely store and access your files in the cloud.
ASUS Remote GO!
Take complete control of your PC
- Cloud GO!
Back up all your files on your ASUS WebStorage, Dropbox®, Microsoft OneDrive, Google Drive™, and SkyDrive® accounts in one place
- Remote Desktop
Access and control your PC easily, anytime and anywhere
- File Transfer
Sync files between your PCs and smart devices with just one click
- Remote Keyboard & Mouse
For total PC control from the comfort of your sofa
ASUS Media Streamer :
Share and stream music or movies
- Enjoy multimedia content anywhere
- Stream movies to your TV
- Play music through your PC
Wi-Fi 802.11ac :
Faster, more stable internet connections
- Dual-band 802.11ac Wi-Fi
- Stronger signals and three times the speed of previous Wi-Fi standards
- Ideal for downloading files or streaming videos
Easy hardware customization for added flexibility
Customization made easy
You can tailor VivoMini UN65U according to your needs. You can even choose which operating system, Wi-Fi card, or storage options you want when it's time for an upgrade.
Easy hardware upgrades
Hardware upgrades can be done in three simple steps – all you need is a screw driver.
Extensive connectivity
VivoMini UN65U features two front-mounted USB ports that are within easy reach and feature BC1.2 fast charging, so you can charge your mobile devices in half the time. In addition, the UN65U offers convenient connectivity options, including four USB 3.0 ports, a 4-in-1 card reader, HDMI and DisplayPort++.
Quality you can trust
Fully-tested for extreme reliability, wide compatibility and assured safety
Years of engineering expertise have gone into each VivoMini UN65U, with each unit being subjected to a series of reliability and quality tests to ensure they meet our exacting standards. It can cope with temperature extremes and is robust enough to withstand bumps and knocks during shipping.
ASUS Desktops – most recommended Windows desktop brand, 4 years running!
Innovation, design and reliability are at the heart of all ASUS computers. ASUS Desktops have won the PCMag Readers' Choice for Overall Satisfaction for four years in a row (2012-2015).
