带宽
| 支持数据传输率 |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps |
端口 & 界面
| 主机接口 |
PCI |
| 內置式 |
Y |
| 槽式 |
32-bit PCI |
联网
| 扩频方法 |
DSSS |
| 调制 |
CCK, DBPSK, DQPSK, OFDM |
| 频段 |
2.412 - 2.472 GHz |
天线
| 天线类型 |
Detachable |
| 天线接口类型 |
RP-SMA |
其他功能
| 格式要素 |
Plug-in |
| 开放空间最大射程 |
802.11b - 310m\n802.11g - 60m |
| 遵守工业标准 |
IEEE 802.11b/g |
| 频道/通道 数量 |
13 channels |
另外
| 室内最大射程 |
802.11b - 40m\n802.11g - 30m |
| 输出电源 |
18dBm |
| 数据传输率（最大） |
54 Mbit/s |
| 连接方式 |
Wireless |

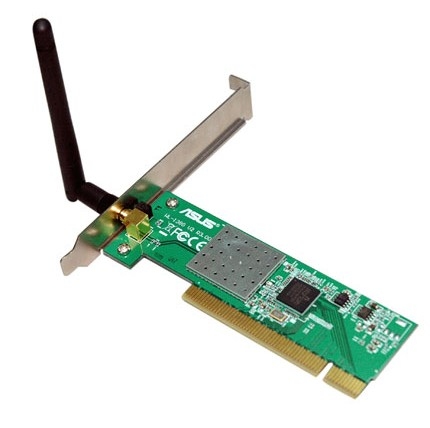

WL-138g V2 PCI Adapter
Asus WL-138g V2 Wireless PCI Adapter provides an option for desktop PC users to optimize wireless LAN connectivity. The Asus wireless IEEE802.11g PCI Adapter is ready to run in any PCI-equipped desktop PC. With WL-138g V2 Wireless PCI Adapter, users may easily upgrade their desktop PCs to WLAN client station, which have users on the network without restriction.
Fast and easy data transfer
Fast data transfer at 54Mbps and 11Mbps through IEEE802.11g and IEEE802.11b, respectively. It also supportt WEP (64/128 bit) and WPA & WPA2 (including 802.1x, TKIP, AES, …) encryption, to prevent unauthorized entries.
Auto-environment detection
The system will automatically detect WLAN environments to select 802.11g for faster transfer or 802.11b for backward compatible.
Features:
- PCI bus power management interface specification 1.0 compliant.
- ACPI 1.0 compliant.
- IEEE 802.11b/g standard for 2.4 GHz Wireless LAN.
- PCI local bus specification Revision 2.2 compliant.
- Reverse connector with a detachable antenna.
- Supports 64/128 bit WEP and WiFi Protected Access (WPA2).
- Support Windows XP/2000/ME/98SE.
- Support Software AP.
