性能
| 垂直波束宽度 |
55 ° |
| 水平波速宽度 |
360 ° |
| 天线增益水平(最大值) |
5 dBi |
| 频段 |
2.4 - 2.5 GHz |
| 阻抗 |
50 Ω |
产品特点
| 极化类型 |
Vertical polarization |
| 功率处理 |
2 W |

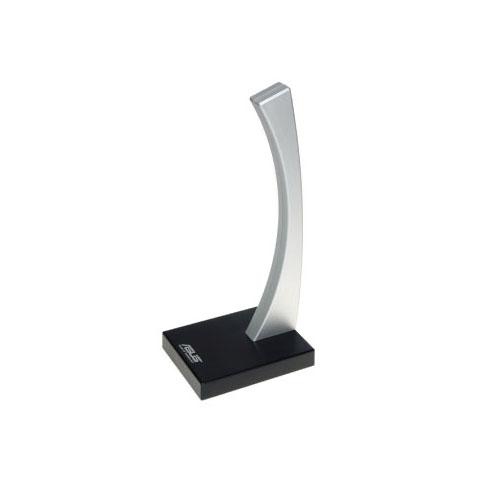

The WL-ANT150 Omni High Gain Antenna provides more power and larger coverage range for wireless networking. It can be used with ASUS 2.4GHz access points, routers, and client cards with RP-SMA or RP-TNC connectors.
360° Coverage Extension
Stronger signal increases wireless coverage to hard-to-reach areas. Increase the strength of outgoing signals and sensitivity for signal reception.
Cost Effective
The high-gain antenna saves wiring costs for building corporate wireless infrastructures by driving stronger signals to all corners.
Easy to Install (No driver required)
Just unscrew your current antenna, and attach the high-gain antenna in its place.
Supports RP-SMA and/or RP-TNC interfaces (connector included)
A RP-SMA to RP-TNC connector adapter is included for compatibility with wireless devices made by other companies.
*Works with: WL-300g (Optional connection adapter for RP-SMA), WL-500 series, WL-530G, WL-600G, WL-HDD 2.5, WL-520G, WL-520GU, WL-700G, RT-N10, RT-N11, RT-N12, RT-N16 , WL-130G, WL-138G, PCI-G31, PCE-N13, DSL-G31
