内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866, 2133 MHz |
| DIMM插槽数量 |
16 |
| 支持的内存类型 |
DDR4-SDRAM |
| 支持 LRDIMM 时钟频率 |
1600, 1866, 2133, 1333 MHz |
| 支持RDIMM模块的容量 |
32GB, 64GB |
| 支持RDIMM时钟速度 |
1333, 1600, 1866, 2133 MHz |
| 支持 LRDIMM 模块容量 |
8GB, 16GB, 32GB |
| 最大内部存储 |
1024 GB |
扩展槽
| PCI Express X 8（Gen 3.x）插槽 |
2 |
| PCI Express X16（Gen 3.x）插槽 |
3 |
内置输入/输出系统
| USB 2.0接口 |
1 |
| 机箱防盗接口 |
Y |
| 串行端口接头连接器 |
1 |
背板输出端口
| PS/2连接埠数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
存储控制器
| RAID支持 |
Y |
| 硬盘接口 |
Serial ATA III |
另外
| 主板晶片 |
Intel C612 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
5 |

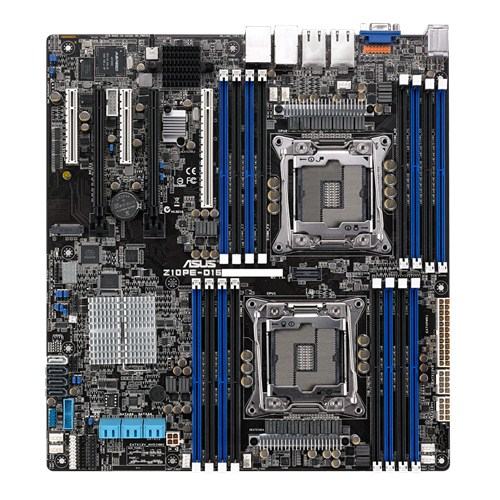

Intel C612 PCH, LGA 2011-3, max 1024GB LRDIMM, EEB
Mass storage capacity and additional OS storage
Z10PE-D16/4L is equipped with ten 6 Gb/s SATA ports, offering support for mass storage capacity. In an alternative configuration, Z10PE-D16/4L has nine 6 Gb/s SATA and an M.2 slot for a solid-state drive — ideal for an operating system boot drive! In this generation, ASUS has a whole new PIKE solution, standard PCI-E form factor for user to equip with multiple PIKE II cards on one motherboard which maximizes the expandability and utilizations. Just placing the PIKE II card, Z10PE-D16/4L can immediately enlarge the capacity, upgrade to 12G solution and improve the performance, making it the great upgrade option.
5 expansion slots
Z10PE-D16/4L has great expandability with five expansion ports: three PCI Express 3.0 x16 slots and two PCI Express 3.0 x8 slots. Additionally, Z10PE-D16/4L is equipped for a diverse range of applications including the usage of multiple host bus adapters (HBA).
Premium components for premium efficiency
ASUS Z10 server board series design the premium power solution with the hand-chosen components and provide premium efficiency which is up to 94%. The premium power solution consist 4 pillars to achieve the 94% premium efficiency: Beat Thermal Choke, Dr. MOS, 12K capacitor and Digi+ VRM. A special fin design of Beat-Thermal-Choke results in 3-5℃-lower choke temperatures and raise the stability, and translates into minimal-loss power delivery. The Dr. MOS is a proven stable circuit integrated MOSFET, which can optimize the switching performance and contribute the efficiency to the system. ASUS DIGI+ VRM design empowers users with superior flexibility and has the perfect precision to ensure optimized performance, extreme system stability. Moreover, ASUS is the world’s first server manufacturer to introduce 12K solid capacitors which are able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). These 12K capacitors can also lower equivalent series resistance (ESR) and thus to increase efficiency and minimal heat generation.
Quick Initialization Guidance
The ASUS Z10 Series features quick initialization guidance which lets users realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. The quick initialization guidance during the POST includes 2 phases. In phase 1 -- POST in seconds, the screen lightens in seconds to make users instantly access to system initializing status. In phase 2, device scanning information and 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for maintenance.
Complete remote server management
The ASMB8-iKVM (IPMI 2.0-compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, users could save time and effort on server management and trouble-shooting.
