内存参数
| 可支持内存时钟速度 |
2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733 MHz |
| 无错误检测和更正 |
Y |
| DIMM插槽数量 |
4 |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 最大内部存储 |
64 GB |
内置输入/输出系统
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| USB 2.0接口 |
1 |
| SATA III连接器数量 |
6 |
| 清除CMOS按钮 |
Y |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
4 |
| EATX电源接头数量 |
1 |
| 迅雷 ™ (Thunderbolt™)连接端口 |
1 |
技术细节
| 英特尔®快速存储技术 |
Y |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 格式要素 |
ATX |
处理器的特殊功能
| 英特尔®可信执行技术 |
N |
| 英特尔® 快速存储技术企业版（Intel® RSTe） |
N |
| 英特尔®虚拟化技术 |
VT-d |
| 英特尔®vPro™ 技术 |
N |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI AMI |
| ACPI的版本 |
5.0 |
联网
| 局域网控制器 |
Intel I210AT, Intel I219-LM |
| 以太网接口类型 |
Gigabit Ethernet |
| 无线局域网连接 |
N |
背板输出端口
| USB3.1（第 2 代3.1）Type-A 端口数量 |
1 |
| USB3.1（第 2 代3.1）Type-C 端口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
存储控制器
| RAID支持 |
Y |
| 硬盘接口 |
Serial ATA III |
另外
| 主板晶片 |
Intel Z170 |
| 英特尔® 高保真音频技术 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 以太网连接器 |
Y |

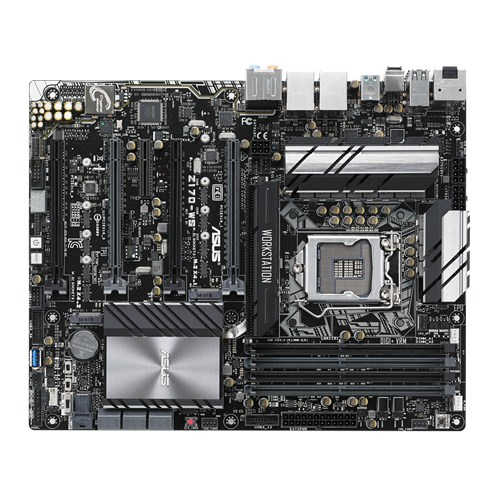

Chipset Intel Z170,Socket 1151, DDR4, 64GB
Quad Strength Graphics with Ultimate Transfer Speeds
- Ultimate graphics power : Accommodates quad PCI Express 3.0 graphics cards at x16 speed
- Ultimate Transfer Speeds : The latest 10Gb/s USB 3.1, Dual 32Gbit/s M.2 x4 and U.2 on board
- Ultimate Server Design : 12K capacitors, ProCool connectors, diverse VGA, RAID and LAN cards support
- 5-Way Optimization: One click optimizes your entire system with a dedicated water-pump header on board
- ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking
Quad Strength Graphic Power
The Intel Z170 chipset-based workstation motherboard features on-demand NVIDIA® GeForce® SLI™ and AMD CrossFireX™ technology, plus hassle-free troubleshooting features for minimized downtime.
Four PCI Express 3.0 x16 slots enable extreme graphics power
The Z170-WS can carry up to four dual-slot graphics. It supports 4-Way NVIDIA® Geforce® SLI™ and AMD CrossFireX™ x 16 slot, making it an excellent choice for graphics professionals who depend on powerful graphics in areas such as design and modeling, medical research, plus processing-intensive simulation and rendering applications. In addition to graphics cards, extensive Z170-WS expandability offers ample room for RAID cards, PCI Express-based solid state storage drives, video capture cards, and other components.
Server Grade Design
ASUS Z170-WS couples innovative thinking with premium components to deliver industry-leading power efficiency.
ASUS introduce the industry‘s most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z170-WS is built to stay cool under pressure — and boosts performance, power efficiency and product longevity into extreme levels! In addition, Z170-WS is designed and tested for professional VGA, RAID and LAN cards, providing optimized graphics, storage and internet connecting speed for users. If you are looking for the extreme performance, look no further than Z170-WS.
12K hour caps - Capacitors with World's Best Longevity
ASUS is the world's first motherboard manufacturer to introduce 12K solid capacitors, and X99-E WS is of course equipped. These Japanese-made capacitors are the most durable in the industry, able to endure up to 12K hours at 105 °C and 1.2M hours at 65 °C. This is far higher than the temperatures generated by everyday computing, so X99-E WS is built for endurance . Our 12k capacitors also boast lowered equivalent series resistance (ESR) for increased efficiency and minimized heat generation — improving overall performance!
One click overclock and cooling, done!
Get performance, efficiency, digital power, fan control and even networking and audio tuning tailored for you
5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
- Stutter is eliminated for smooth-running apps, even under heavy loading.
- Energy waste is reduced so you'll save money.
TPU
Unleash your PC's full performance with a simple two-phase onboard switch or the ASUS AI Suite 3 utility! The TurboV Processing Unit (TPU) offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and to exploit the potential out of your graphics card*.
*Please see the graphics card QVL
OC Design- ASUS PRO Clock technology
A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.
DDR4 overclocking strength in numbers
Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3733MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.
Native M.2/NVMe PCIe RAID support for lightning fast storage speeds!
Not satisfied with single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speed!
