内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 最大RDIMM内存 |
192 GB |
| 最大UDIMM内存 |
48 GB |
| 支持RDIMM时钟速度 |
1333, 1066, 800 MHz |
| 支持RDIMM模块的容量 |
8GB, 4GB, 2GB, 1GB, 16GB |
| 支持UDIMM模组容量 |
4GB, 2GB, 1GB |
| 內存插槽数量 |
12 |
| 最大内部存储 |
256 GB |
内置输入/输出系统
| ATX电源接头 |
Y |
| USB 2.0接口 |
2 |
| SATA II连接器数量 |
4 |
| 机箱风扇接头数量 |
4 |
其他功能
| 图形控制器 |
AST2050 |
| 控制器接口类型 |
ICH10R |
另外
| 系统总线 |
6.4 GT/s |
| 主板晶片 |
Intel 5520 |
| 以太网路(RJ-45)连接接口数量 |
2 |

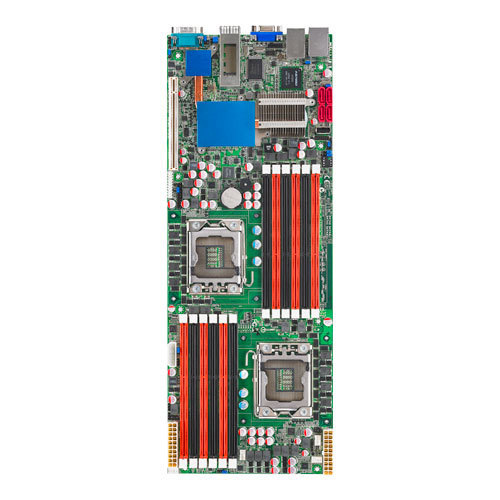

Z8PH-D12 SE/QDR, 2 x Socket 1366, 12 x DDR3 800/1066/1333 Reg DIMM/ Unbuffered DIMM 96GB (RDIMM)/48GB (UDIMM), 1 x PCI-E x16, 4 x SATA2 300MB/s, 2 x Intel 82574L LAN, Aspeed AST2050 8MB
<b>Compact Size Allows More Power Supply Options</b>
Z8PH-D12 SE/QDR is 6.3 inch in width an 16.7 inch in length, which occupies the least area compared to competitors’ and is easy for two serverboards to fit in a 1U chassis. With 4.4 inch’ width reserved for power in the chassis, customers then will have the opportunity to fit out redundant power supply.
<b>EPU Technology for Optimized Power Efficiency</b>
Equipped with the ASUS exclusive EPU technology, the Z8PH-D12 SE/QDR provides best power management power efficiency by detecting current loadings and intelligently moderating power in real-time.
<b>Infiniband</b>
The highest performing interconnect solution for Enterprise Data Centers, Cloud Computing, High-Performance Computing, and embedded environments. Performance up to 40 Gb/s and provide world-class low latency and high-bandwidth connectivity.
<b>Built-in High Quality Components</b>
The ASUS 6-Phase CPU power and 3-Phase memory power provides support for the high-end 130W CPU. It reduces input ripple current and output ripple voltage, which keeps CPUs and power modules from suffering the risk of high power stress.
Furthermore, the Z8PH-D12 SE/QDR utilizes all Japan-made ultra long life conductive polymer capacitors, which can sustain 57 years at 65?, onboard for durability, improved lifespan, and enhanced thermal capacity.
<b>Optional ASMB4-iKVM Upgrade Kit for Easy Troubleshooting</b>
The optional ASMB4-iKVM upgrade kit provides remote real-time full control with BIOS-level access to the system by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
<b>Virtualization Application Certified</b>
Virtualization provides central management through a hub and reduces power consumption and cost for cooling and space requirements. The Z8PH-D12 SE/QDR is able to provide excellent virtualization applications with ISV certification. The onboard vertical USB connector is designed for VMWare ESXi, to make full use of the system resource and reduce the TCO and IT expense.
