内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 支持UDIMM时钟速度 |
1066, 1333 MHz |
| DIMM插槽数量 |
8 |
| 支持的内存类型 |
DDR3-SDRAM |
| 支持UDIMM模组容量 |
2GB, 4GB, 8GB |
| 支持RDIMM模块的容量 |
16GB, 2GB, 4GB, 8GB |
| 支持RDIMM时钟速度 |
1066, 1333, 1600 MHz |
| 最大内部存储 |
256 GB |
背板输出端口
| 串口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
内置输入/输出系统
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 2.0接口 |
2 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
4 |
| 机箱防盗接口 |
Y |
| 串行端口接头连接器 |
1 |
| 机箱风扇接头数量 |
6 |
处理器
| 可支持处理器数量 |
1 |
| 英特尔® 至强® 系列 |
E5-1600, E5-2600 |
| 处理器生产厂商 |
Intel |
| 可支持的处理器的核心数量 |
4, 6 |
图像
| 板载图形适配器内存 |
16 MB |
| 板载图形适配器 |
Y |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
2 |
| PCI Express x8插槽 |
3 |
| PCI Express插槽版本 |
2.0, 3.0 |
联网
| 局域网控制器 |
Intel 82574L |
| 以太网接口类型 |
Gigabit Ethernet |
| 无线局域网连接 |
N |
存储控制器
| 硬盘接口 |
Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
另外
| 主板晶片 |
Intel C602 |
| PCI Express插槽数量 |
7 |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 以太网连接器 |
Y |

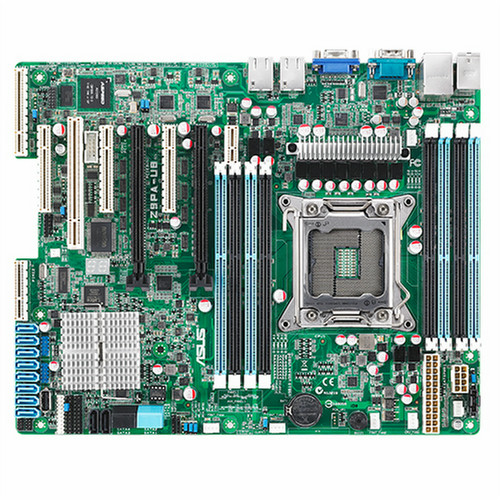

1 x Socket 2011, 8 x DDR3 RDIMM/UDIMM/LRDIMM max. 256GB, Aspeed AST2300 16MB VRAM, 2 x Intel 82574L + 1 x Mgmt LAN, ATX
Optimized dual-use server and high-end workstation performance
Commercial way to upgrade to Romley platform
The ATX-sized Z9PA-U8 supports the latest Intel® Xeon® E5-1600 and E5-2600 processor family, featuring high computing capacity and faster data transmission. This server motherboard provides customer a cost-effective way to enter into Romley platform with one way CPU and Desktop (ATX) power supply.
Design for Datacenter Cache Server application
The Z9PA-U8 delivers outstanding data transmission performance with two DIMM per channel and up to 256GB LRDIMM. Thus, it is suitable for datacenter on Cache Server application which speeds up the access to data and quick response the demand from network.
Dual Use for Server and High End Workstation
The design and features of the Z9PA-U8 accommodate usage as a medium to large scale server or high-end workstation for even the most complex tasks. Additionally, it adopts the latest hardware standards, including USB 3.0 for faster data transfers and PCI Express 3.0 enhanced signaling and data integrity.
MIO-892 Card Supported for 7.1 ch Audio Experience
The Z9PA-U8 supports the latest ASUS MIO-892 Card. With better enhanced signal-to-noise ratio in a 7.1 surround channel, the MIO card offers great sound quality to complement the robust video power—delivering exhilarating surround sound. Accompany with graphic card and MIO-892, Z9PA-U8 becomes powerful E5-2600 single socket workstation.
Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise
The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, management LAN fail-over support, and user-friendly web-based graphical interface through all major browsers. Moreover, ASWM Enterprise provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.
