内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 支持RDIMM时钟速度 |
1600, 1066, 1333 MHz |
| 最大RDIMM内存 |
512 GB |
| 最大内部存储 |
512 GB |
| 支持UDIMM时钟速度 |
1066, 1333, 1600 MHz |
| 内存通道支持 |
Quad |
| 支持UDIMM模组容量 |
2GB, 4GB, 8GB |
| 支持RDIMM模块的容量 |
16GB, 2GB, 4GB, 8GB |
| DIMM插槽数量 |
16 |
| 支持的内存类型 |
DDR3-SDRAM |
内置输入/输出系统
| TPM（可信任安全平台模组）接口 |
Y |
| ATX电源接头 |
Y |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
4 |
| 并行接口 |
N |
| COM连接器数量 |
2 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
8 |
| USB 2.0接口 |
3 |
背板输出端口
| PS/2连接埠数量 |
1 |
| 麦克风/音频输入插孔 |
N |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express插槽版本 |
3.0 |
| PCI Express x16 插槽 |
6 |
| PCI Express配件 |
1x16 |
联网
| 无线局域网连接 |
N |
| 以太网接口类型 |
Gigabit Ethernet |
存储控制器
| 硬盘接口 |
Serial ATA, Serial ATA II, Serial ATA III |
处理器
| 可支持处理器数量 |
2 |
| 支持QPI |
6.4, 7.2 GT/s |
| 处理器生产厂商 |
Intel |
| 可支持的处理器的核心数量 |
4, 8 |
图像
| 板载图形适配器内存 |
16 MB |
| 板载图形适配器 |
Y |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |
| 主板晶片 |
Intel C602 |
| PCI Express插槽数量 |
6 |

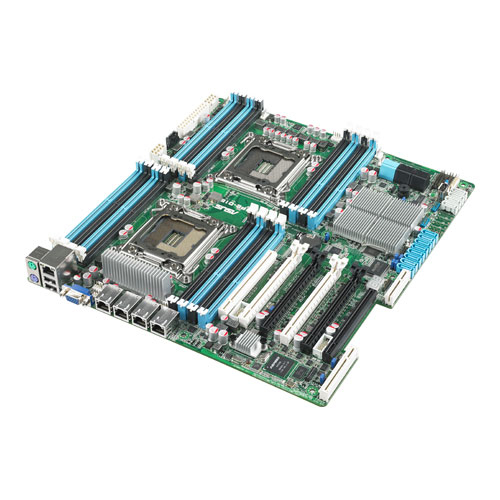

Z9PE-D16 - 2 x Socket 2011, Intel Xeon processor E5-2600, Intel C602-A PCH, 16 Slots (4-channel per CPU, 8 DIMM per CPU), Maximum 512GB RDIMM
The ASUS Z9PE-D16 serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, quad Intel® LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.
Innovative technologies deliver easy expandability, complete storage and high power efficiency
Complete storage support
The Z9PE-D16 boasts multiple SAS implementation, from Intel® SCU/AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gb/s technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications.
Green and highly power efficient
Z9PE-D16 voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs.
ASMB6-iKVM upgrade kit for easy troubleshooting
The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers.
Cutting-edge architecture
The Z9PE-D16 supports the latest Intel® E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support upcoming E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600/1333/1066 RDIMM/UDIMM/LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16 enables higher bandwidth to meet various demanding application requirements.
Server-class quad LAN connection
The new serverboard ships with the industry’s first fully integrated Intel® I350 quad-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16 easily manages virtualization applications while maintaining superior performance.
