端口 & 界面
| 视频接口类型 |
DVI-I |
| 计算机数量 |
4 |
| 键盘接口类型 |
USB |
| 鼠标接口类型 |
USB |
能量控制
| 功耗（一般操作） |
6.1 W |
| 交流电（AC）输入频率 |
50/60 Hz |
视频
| 最大模拟分辨率 |
2048 x 1536 pixels |
| 最大数字分辨率 |
2560 x 1600 pixels |
| 最大分辨率 |
2560 x 1600 pixels |
环境条件
| 运行湿度范围(H-H) |
0 - 80% |
| 储存温度范围 (T-T) |
-20 - 60 °C |
重量和尺寸
| 深度 |
169 mm |
| 重量 |
2100 g |
| 宽度 |
349 mm |
| 高度 |
60.6 mm |
其他功能
| 电源类型 |
AC |
| 兼容性操作系统 |
Windows, Linux, Mac, Sun |
另外
| 产品色彩 |
Black |
| 连接方式 |
Wired |
| 运行温度范围（T - T） |
0 - 40 °C |

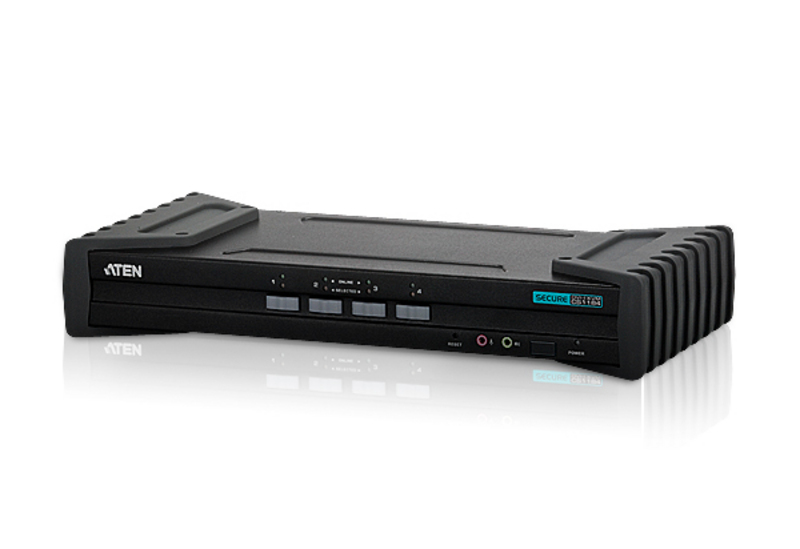

4-Port USB DVI Secure KVM Switch
Features
- 4-port USB DVI Dual-Link Secure KVM Switch
- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
- One USB console controls 4 secure computers
- NIAP-certified — validated to Common Criteria EAL2+ security requirements
- Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching
- Isolated channel per port — makes it impossible for data to be transferred between computers
- Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
- Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
- Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
- Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support — Windows, Linux, Mac, and Sun
- Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
- Rugged metal enclosure
- Built-in internal power
Package Contents
- 1x CS1184 USB DVI Secure KVM Switch
- 1x 0AD8-0C05-24EG Power Cord
- 1x User Instructions
