端口 & 界面
| 视频接口类型 |
VGA |
| 计算机数量 |
16 |
| 键盘接口类型 |
N |
| 鼠标接口类型 |
N |
| USB2.0端口的数量 |
1 |
| DC-IN插口 |
Y |
其他功能
| 电源需求 |
DC 5.3 V |
| 输入输出端口 |
1 x RJ-11 |
重量和尺寸
| 深度 |
160 mm |
| 宽度 |
433 mm |
| 重量 |
2850 g |
| 高度 |
44 mm |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 运行湿度范围(H-H) |
0 - 80% |
另外
| 产品色彩 |
Black |
| 连接方式 |
Wired |
| 以太网连接器 |
N |
| 运行温度范围（T - T） |
0 - 50 °C |

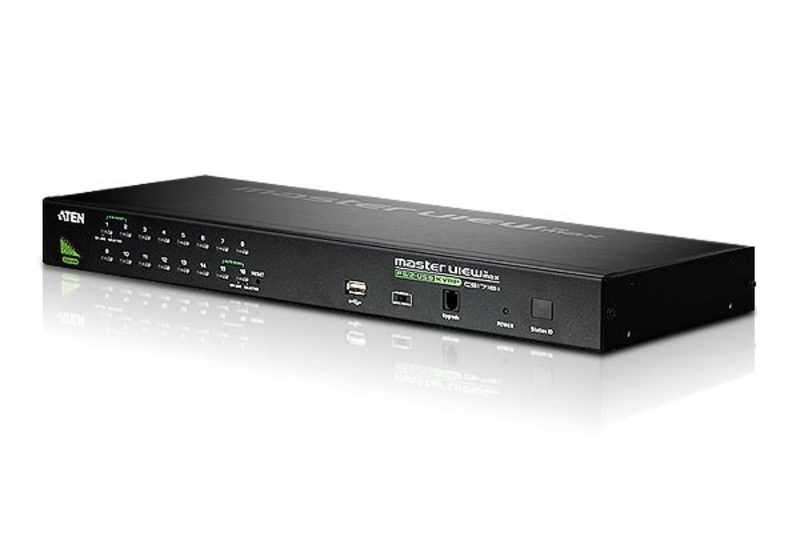

16-Port USB - PS/2 VGA KVM Switch with USB Peripheral port
Features
- One USB-PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast Mode - operation simultaneously performed on all selected computers... etc
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
- Rack mountable in 19" system rack (1U)
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
Package Contents
- 1x KVM Switch with Standard Rack Mounting Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G Console Cable
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set(4 PCS)
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
