端口 & 界面
| 串口数量 |
2 |
| 交流电（AC）插座数量 |
8 AC outlet(s) |
| 电源插头 |
C14 coupler |
能量控制
| 最大电流 |
12 A |
| 接受频率 |
50/60 Hz |
| 名义输出电压 |
100-240 V |
| 额定输入电压 |
100-240 V |

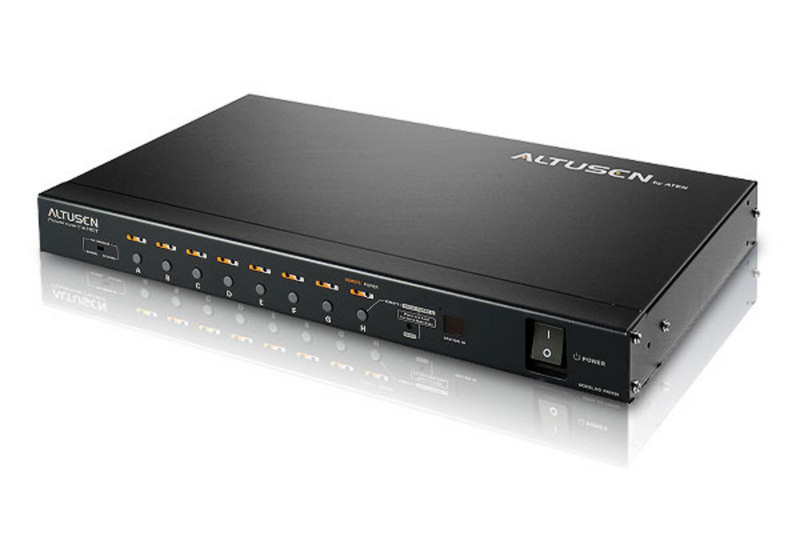

8-Port 1U Power Distribution Unit (PDU), Switched (8 x C13)
Features
- Remote power on / off / reboot control for eight outlets via TCP/IP and a built in RS-232 PON (Power Over the NET™) port
- Local power on / off / reboot control via the PN0108's PON port to the computer's RS-232 port

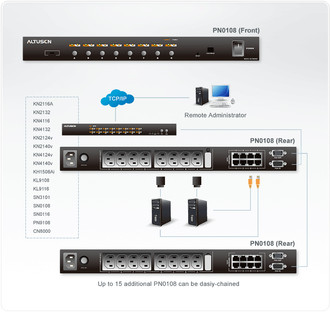

- Daisy chain up to 15 additional stations to control up to 128 outlets
- Manual switching between Local and Remote access for each port via front panel push button switches
- Individual control of each port - users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a GUI interface
- Provides three configuration/management methods: Browser; Telnet; or Console Terminal
- Safe shutdown and rebooting for Windows systems*
- Overcurrent protection and recovery for each AC port (110 V model only); total port overcurrent protection (both models) - remote users can monitor the outlet status via the GUI interface
- Separate circuits for the unit's power and the power to the devices - the power control status menu is still accessible even when an overcurrent condition trips the devices' circuit breaker
- On/Off scheduling - allows everything from a one-time start/shutdown, to daily, weekly, etc. starts/shutdowns at user-specified times
- Port grouping - perform the same action on a specified group of ports
- LEDs for easy status monitoring
- Two level (Administrator and User) security
- Configuration can be reset
- Firmware upgradeable - daisy chained stations receive the upgrade via the daisy chain bus
- UL/TUV approved
- Multiplatform support: Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
*Safe shutdown and rebooting is supported if the Power Monitor utility has been installed
*The PN0108 is not a stand-alone unit. It must be connected to the CN6000, PN9108, SN0108 or SN0116 to access these features
Package Contents
- 1x 8-Port Power Over the NET™
- 1x 1ADP-0005-001G AC Source Power Cord
- 8x Power Outlet Power Cords
- 8x Safe Shutdown Cables
- 1x PON Cable (DB9 F to DB9 M)
- 1x User Instructions
- 1x Mounting Kit :Rack mounting brackets and hardware
- 4x foot pads
- 1x Software CD
