联网
| 布线技术 |
10/100/1000Base-T(X) |
端口 & 界面
| 音响的连接 |
Y |
| 视频接口类型 |
HDMI |
| 计算机数量 |
2 |
| 控制台端口 |
USB A |
| 键盘接口类型 |
USB |
| 鼠标接口类型 |
USB |
| 麦克风输入数量 |
1 |
| USB 2.0集线器端口数量 |
2 |
| 耳机输出端口 |
1 |
| USB 3.0(第 1代3.1)Type-A 端口数量 |
3 |
| HDMI端口数量 |
1 |
| USB 连接器形状 |
USB Type-A |
| DC-IN插口 |
Y |
系统要求
| Mac兼容性 |
Y |
| 可支持的Mac操作系统 |
Mac OS X 10.9 Mavericks |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
3x Thunderbolt 2.0, 3x USB3.1 A, 2x USB2.0 A, eSATA, RJ-45, HDMI, DC12V , 90W, 97.5 x 57 x 191.9 mm, 780 g

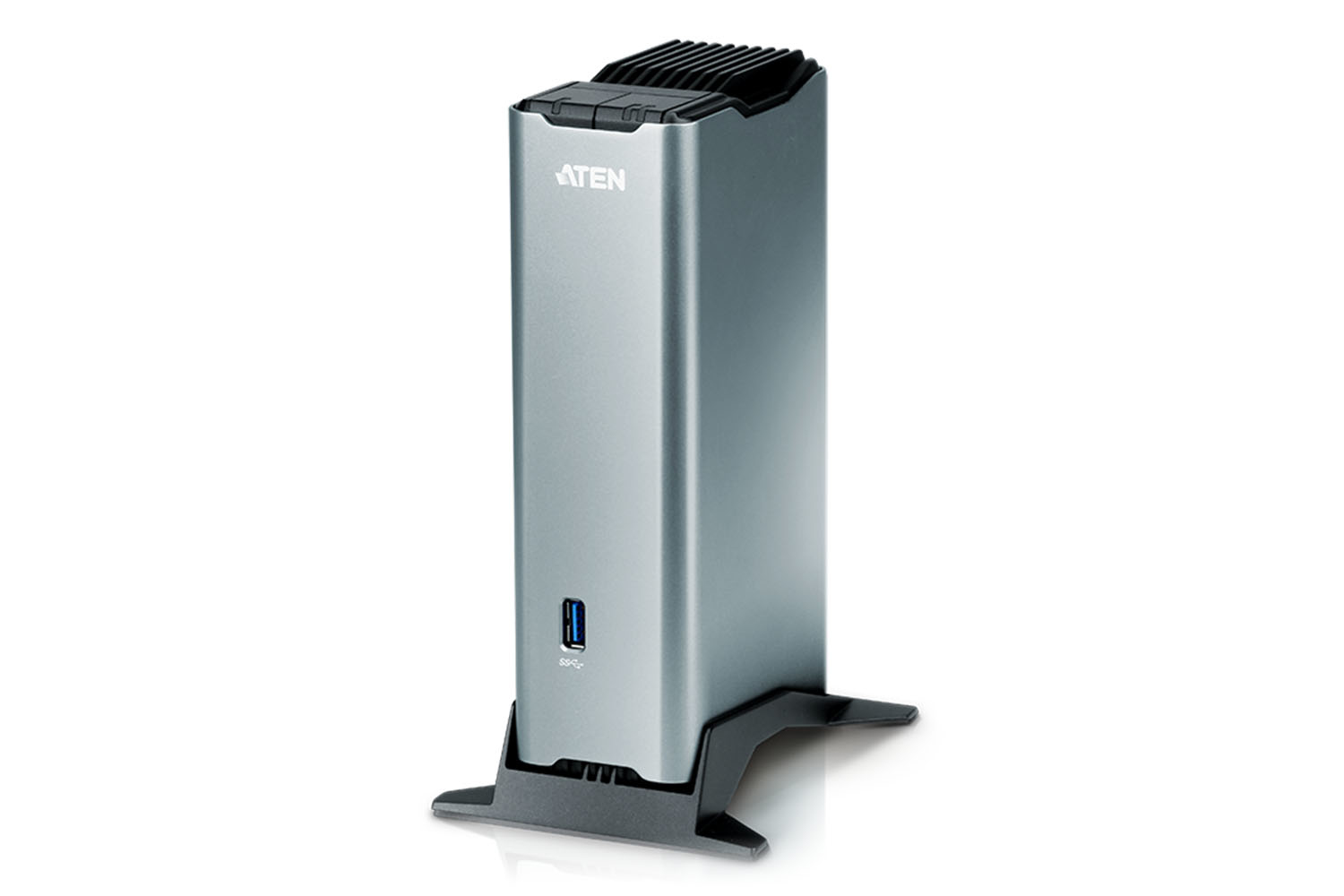

The US7220 Thunderbolt 2 Sharing Switch is a dual-computer docking station with full KVM functionality for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers.
The US7220 enables two Thunderbolt 2- enabled computers to share peripherals with ultra-high 20 Gbps data transfer rates. As a KVM sharing switch it allows you to easily switch the keyboard, video, mouse and peripherals between two computers with the push of a button. With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors and video capture devices; plus USB drives, printers, high-definition cameras, keyboards, mice and more.
The ATEN Thunderbolt 2 Sharing Switch is the ideal choice for those who want the flexibility of laptop computing – with the performance, sharing and high-definition/dual-monitor capabilities of a full workstation.
