技术细节
| 音频系统 |
stereo |
| 可支持的电缆类型 |
Cat5e |
| 最大传输距离 |
200 m |
| 类型 |
AV receiver |
端口 & 界面
| VGA(D-SUB)输出端口 |
2 |
| DC-IN插口 |
Y |

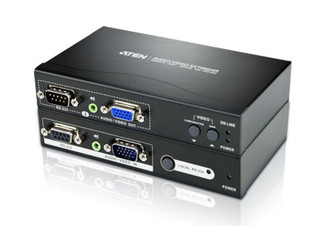

VGA Over Cat5e/6 Audio/Video Receiver with RS-232 (200m)
Features
- Uses Cat 5e cable to connect the local and the remote units
- Dual Audio/video
- Supports one local and two remote displays
- Transmission distance up to 200 m*
- High-quality video – up to 1920x1200@60Hz at 30 m, 1600x1200@60Hz at 150 m, 1280x1024@60Hz at 200 m
- Audio and serial enabled
- Two gain control modes for sharpest picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Provide a RS-232 channel for selection**
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA, WUXGA and multisync monitors
Package Contents
- 1x VE200L Audio / Video Extender (Local Unit)
- 1x VE200R Audio / Video Extender (Remote Unit)
- 1x VGA/Audio Cable (1.8 m)
- 2x 0AD6-1605-09EG Power Adapters
- 1x Infrared Remote Control Handset
- 1x Infrared Receiver
- 1x Infrared Receiver Holder
- 1x Rack Mount Kit
- 1x User Instructions
