技术细节
| 阻抗 |
100 Ω |
| 分辨率 |
1920 x 1200 pixels |
| 带宽 |
10.2 Gbit/s |
| 类型 |
AV transmitter |
| 可支持的电缆类型 |
Cat5e, Cat6a, Cat6 |
| 频率 |
340 MHz |
| 连接器数量 |
1 |
| 最大传输距离 |
70 m |
| HDCP |
Y |
| 电源 |
1.85 W |
重量和尺寸
| 发射器重量 |
250 g |
| 发射器尺寸(宽x深x高) |
87 x 103 x 30 mm |

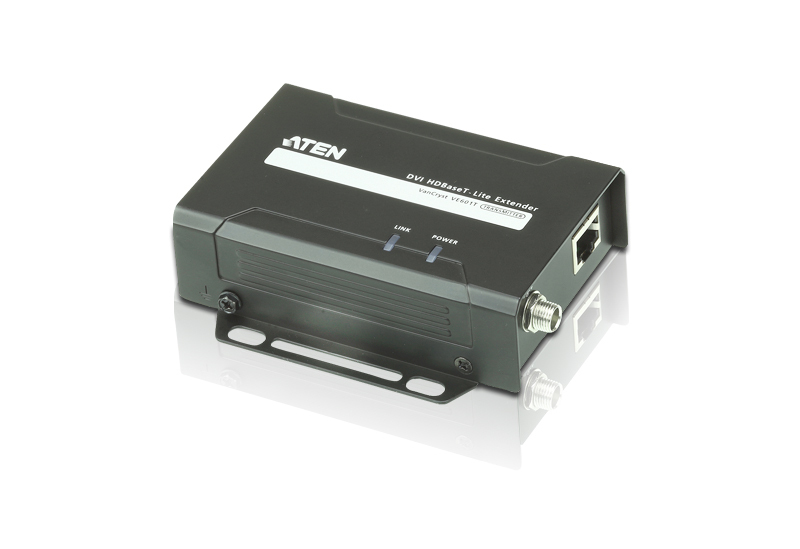

DVI HDBaseT-Lite Transmitter (HDBaseT Class B), 10.2 Gbps, 340 MHz, 0.25 kg
The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
<b>Features:</b>
- HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
