协议
| 媒体接入协议 |
CSMA/CA (ACK) |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
性能
| 接收机灵敏度 |
- 802.11b (1Mbps): -90dBm @8% PER\n- 802.11b (11Mbps): -85dBm @8% PER\n- 802.11g (54Mbps): -68dBm @10% PER\n- 802.11n (135Mbps): -68dBm @10% PER\n- 802.11n (300Mbps): -68dBm @10% PER |
| 通用即插即用（UPnP） |
Y |
| 频段 |
2.412 - 2.472 GHz |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 频道/通道 数量 |
13 channels |
端口 & 界面
| 广域网接口 |
Ethernet (RJ-45) |
| DC-IN插口 |
Y |
其他功能
| 连通的液晶显示器 |
Y |
| 发射功率 |
16 ± 1 dBm dBmW |
| 开放空间最大射程 |
350m |
| 遵守工业标准 |
IEEE 802.11b/g/n |
| 网路功能 |
Fast Ethernet |
另外
| 室内最大射程 |
120m |
| 数据传输率（最大） |
300 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
3 |

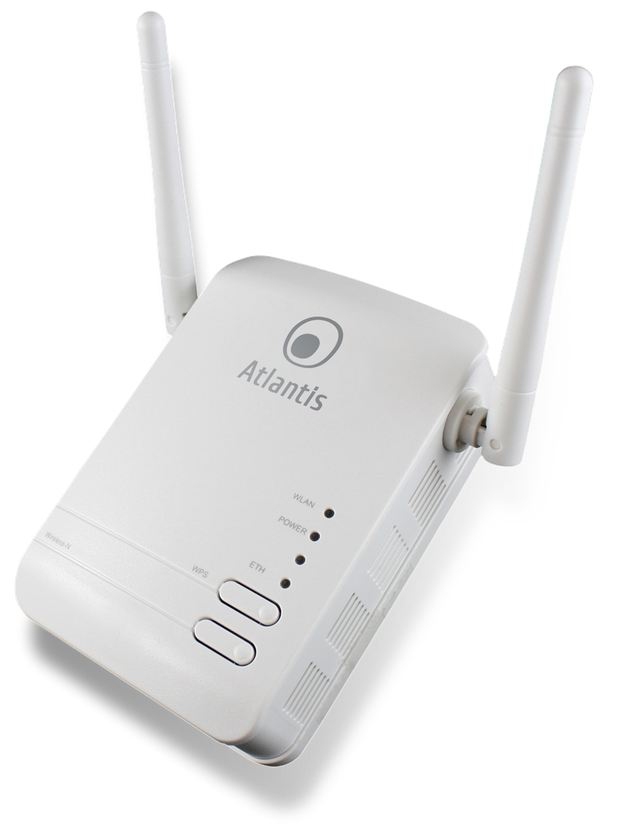

Wireless N 300Mbps MultiFunction Access Point, 4x SSID, WEP/WPA/WPA2, WDS, IEEE 802.11b/g/n
IEEE 802.11n Wireless Multi-Function Access Point
Thanks to its embedded Access Point, based on the most recently 802.11n specifications, is possible to create high performance WLANs with extended coverage. No more dead zones ( 2 x 2 dBi Antennas) and high speed (up to 10 times than traditional IEEE802.11b/g networks) are the most impressive characteristics of this innovative wireless technology, that ensure excellent throughtput performances merging with total freedom of mobility. The WDS (up to 4 AP) feature makes the device an ideal solution for quickly creating and extending a wireless local area network (WLAN) in offices or other workplaces. Multiple SSIDs (up to 4 different SSID) allow users to access different networks through a single access point. Client Isolation and VLAN tagging
Virtual AP
The device supports up to 4 SSIDs (client isolation) with VLAN tag that allows NetFly to perform as multiple virtual access points. Wall Plug mount with internal AC Adapter for an easy installation.
