技术细节
| 类型 |
AV transmitter |
| 最大传输距离 |
100 m |
| 带宽 |
6.75 Gbit/s |
| 可支持的电缆类型 |
Cat5e, Cat7, Cat6 |
| 音频系统 |
Multichannel |

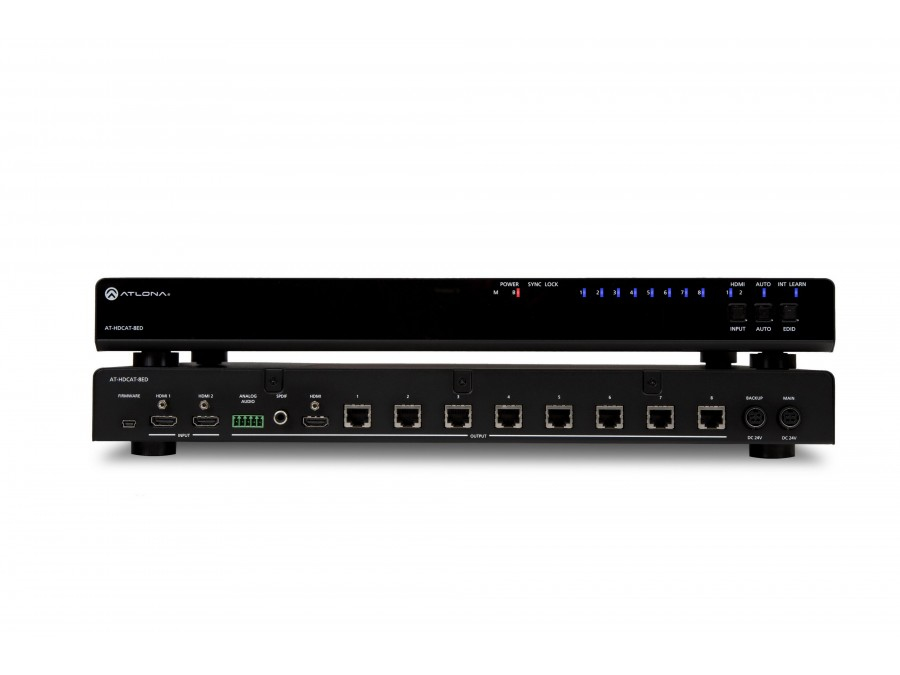

Atlona HDBaseT HDMI 2 by 8 Distribution Amplifier Extended Distance over a Single Category Cable
<b>Powerful Smart Auto-Switching</b>
The HDCAT’s smart switching capability eliminates the need to manually change inputs. Simply power on/off a source device and the matrix conveniently switches automatically.
<b>Go Further with More</b>
Extend your audio/visual experience up to 330ft. HDBaseT technology allows you to send power, video (up to 1080p or 1920x1200) and audio (all Lossy and Lossless formats) signals over a single category cable.
<b>Power of One for All</b>
Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (PoCc) the HDCAT transmits power to all the connected receivers over category cable.
<b>Never too Many Displays</b>
With a built in local HDMI loop out, send your source to multiple HDCATs. Use one source signal for as many as 8 daisy chains.
<b>Additional Features</b>
- Redundant power supply (optional)
- EDID learning mode to ensure compatibility
- Built in S/PDIF and Analog audio loop outs
- Supports pass through of all 3D formats
- Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio).
- Locking HDMI port
- Field serviceable firmware port
- Includes dual purpose wall/rack mount ears, IR remote
- For added reliability use AT-PW24V6.25A Optional Redundant Power Supply
