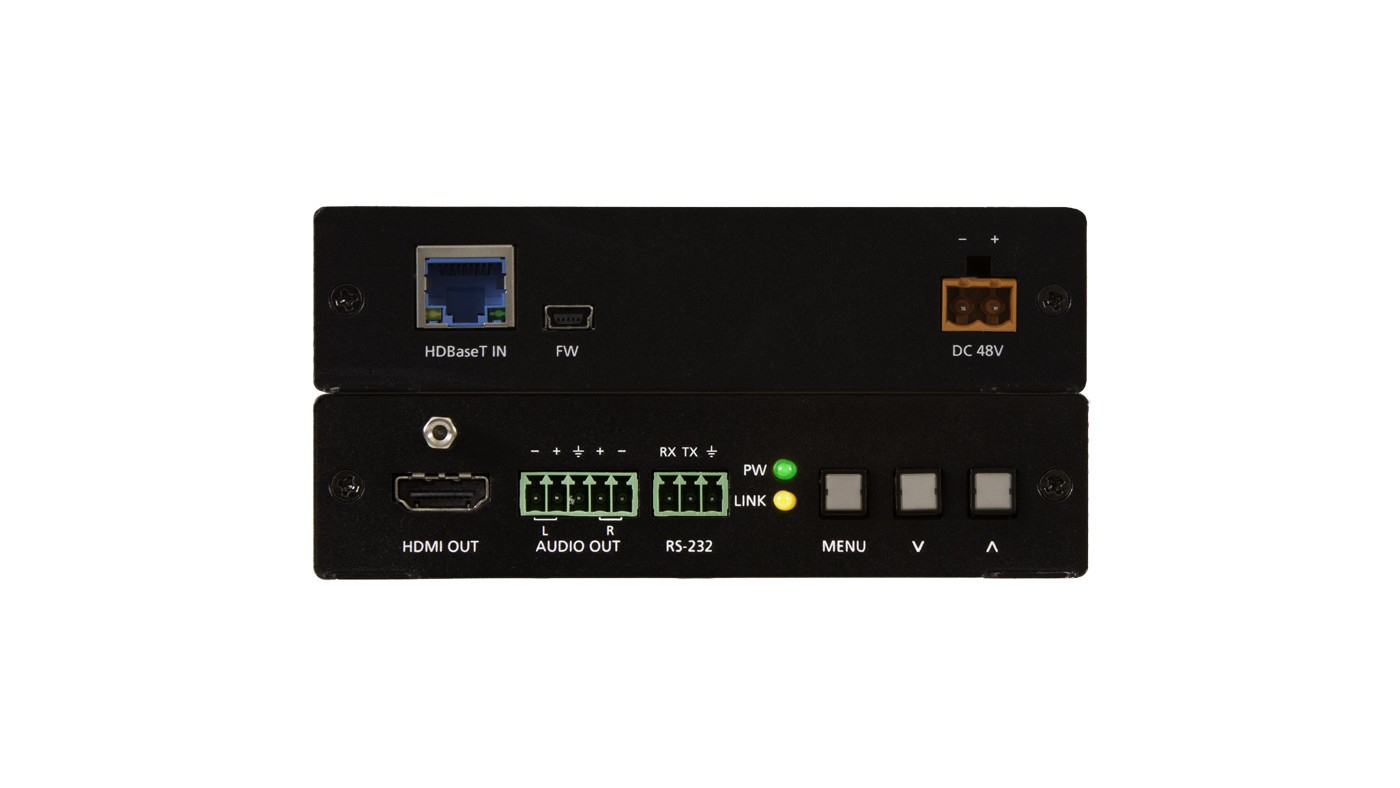

Atlona AT-HDVS-150-RX AV receiver Black AV extender

YUV, RGB, 4:4:4, 4:2:2, 8-bit, 10-bit, 12-bit, PCM 2Ch, HDMI, CAT5e/6, CAT6a/7, 6.75 Gbps, HDCP, 15 W, 100-240 V, 50/60 Hz, 24 V, 2.7 A, 0.31 kg <b>Long distance HDMI extension</b>
- Receives HDMI and VGA/Audio signals up to 230 ft (70m) @ 1080p over CAT6a/7 and 197 feet (60 m) @ 1080p over CAT5e/6
- Uses easy-to-integrate category cable for low-cost, reliable system installation

<b>Scaled HDMI output and input resolution control</b>
- Scales output video signals up to 1080p/60Hz and1920x1200; Set preferred input resolution from 800×600 to 1920×1200
- Assures compatibility of VGA and HDMI sources to the display’s native resolution

<b>Power over Ethernet for AT-HDVS-150-TX</b>
- Industry standard IEEE 802.3af PoE supplied by the receiver over HDBaseT
- No local AC outlet required at the AT-HDVS-150-TX switcher; saves time and integration costs

<b>Audio de-embedding</b>
- Provides two channel, analog audio signal on balanced captive screw connectors
- Improves AV system audio with the use of an external amplifier such as the Atlona AT-PA100-G2

<b>RS-232 scaler control</b>
- Image adjustments, resolution settings, and auto-set to display’s native resolution can be made from a third party control system
- Seamless integration with larger, control system-based AV systems

<b>RS-232 display control</b>
- Facilitates On/Off display control; Included software simplifies programming
- Eliminates need for complex control system in small AV system

<b>Field updatable firmware</b>
- Rear panel USB port provides an easy means for kit upgrades
- Ensures long term system return on investment
