重量和尺寸
超重低音扬声器宽度 |
450 mm |
超重低音炮重量 |
31000 g |
超重低音扬声器厚度 |
525 mm |
超重低音扬声器高度 |
534 mm |
超低音音箱
超重低音频率范围 |
34 - 1000 Hz |
超重低音喇叭敏感度 |
99 dB |
低音炮数量 |
1 |
Subwoofer driver diameter (imperial) |
15 " |
阻抗 |
8 Ω |
超重低音扬声器类型 |
Passive subwoofer |
超重低音功率有效值 |
700 W |
超重低音扬声器的峰值功率 |
1400 W |
15”, 8 Ω, 700 W, 99 dB, 34 Hz - 1 kHz

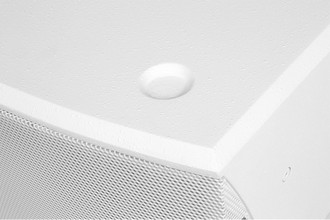

The BASO cabinets are universally useable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment. The BASO15 is loaded with a 15” high-performance woofer with an RMS power rating of 700 Watt and maximum power of 1400 Watt. The strength of this loudspeaker originates from a 4” voice coil which is allowed to extra long excursions. Displacements are precisely controlled by the dual low-loss suspension resulting in a superior linear behaviour. These carefully selected high-grade materials in collaboration with accurate acoustical craftsmanship results in an impressive combination of punch and low frequency extension without compromises. The highly efficient design results in a sensitivity of 99 dB with a capability of continuous sound pressure production up to 127 dB. The frequency response ranges from 38 Hz up to 300 Hz while going down to 34 Hz at -10 dB. Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compact designed without any sacrifice to robustness due to the 18 mm high-quality plywood material finished with structured coating. The integrated carry handles and possibility to add an optional 35 mm pole adapter improve its mobility. Connections are made using two speakon compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.
