麦克风
| 麦克风频率 |
50 - 16000 Hz |
| 麦克风灵敏度 |
45 dB |
| 麦克风方向类型 |
Cardioid microphone |
45 dB, 50Hz-16kHz, RJ45, Cardioid

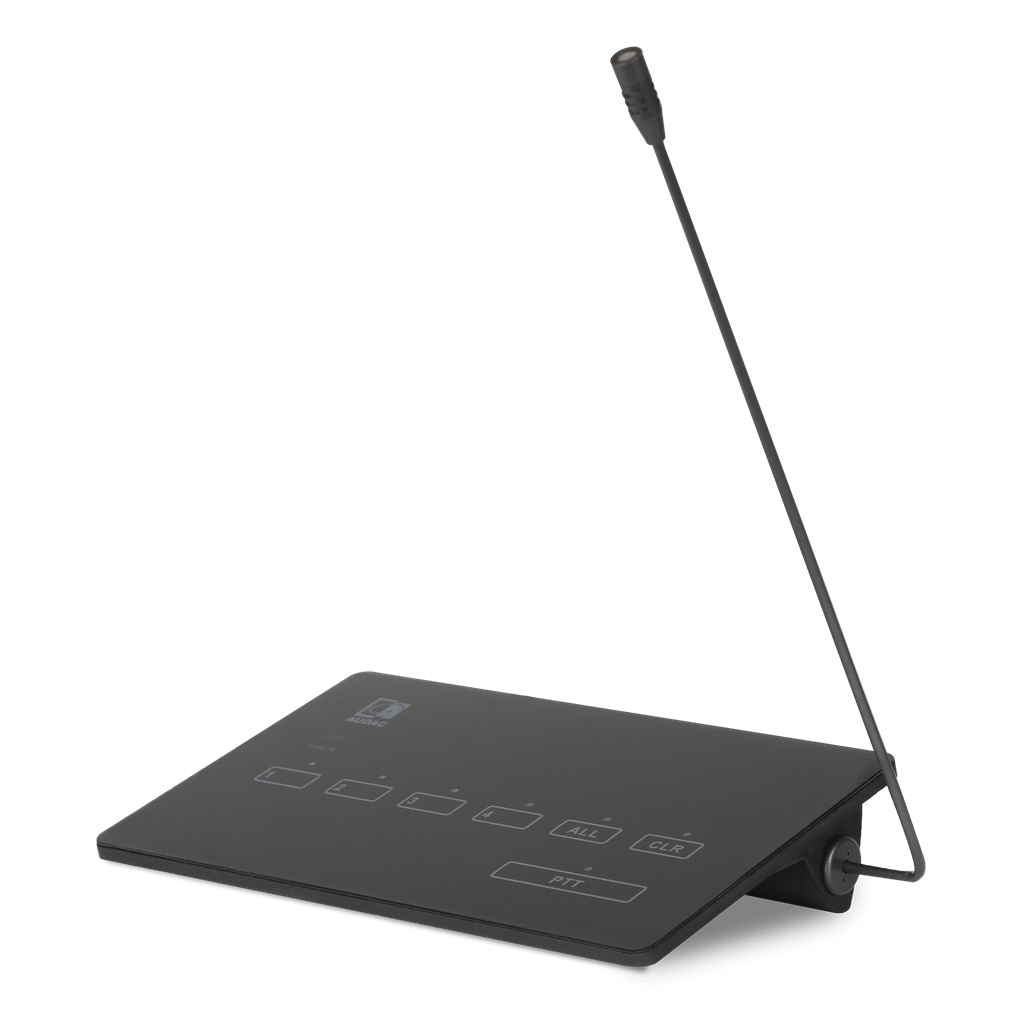

- The MPX series are paging microphones specifically designed for use in combination with MTX series audio matrix systems. The MPX48 is the 4-zone system allowing it being used in combination with an MTX48 4-zone audio matrix system.
- The modern shaped enclosure is finished with a real glass front panel provided with an anti-glare coating. This offers a microphone with elegant outlook which will be appreciated in any office or even design interior environment.
- The controls are integrated in the glass panel through capacitive touch button principle without any mechanically moving parts, same as the indicator LED’s which are completely blended. This guarantees a real high-end outlook and user experience.
- An integrated chime tone is audible before each announcement. Announcements are made through the integrated pipe-neck microphone with a cardioid pickup pattern, which can be tilted to the desired angle.
- Both zone selection and data bus indicators are implemented, giving an overview of the systems current operation mode and data bus occupation. Quick operation is made possible using the ‘select’ & ‘clear all’ buttons, while the ‘push-to-talk’ (PTT) button must be pressed during announcements.
- Connection to the matrix system is done through a fixed connection cable with a length if 2 meter. This distance can be extended to a maximum length of 300m using standard CAT5E (or better) twisted pair cabling.
- Cascading multiple paging stations is possible using the priority-based (user-configurable) databus, when using additional junction boxes ARJ03P or CP45ARJ.
