Auerswald TFS-Dialog 201 0.02 - 0.05MHz security access control system

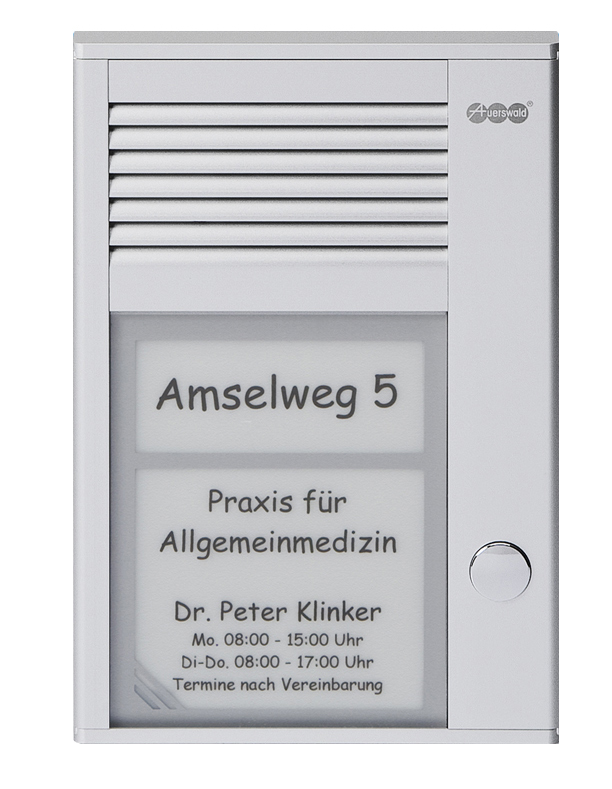

TFS-Dialog 201 - 1 door If your PBX system has no TFE port but you want to use a door terminal, choose the TFS-Dialog 200. It is connected directly to one of your system's analog subscriber ports using a 2-wire cable, and it works almost like a telephone: at a push of the doorbell button, an (internal/external) number is automatically dialled.
The housing fits into any local situation due to its slim construction. This makes a laborious in-wall installation obsolete. For the covering of possibly existing in-wall mounting boxes of former systems a bended cover plate is available which offers weather protection at the same time.

Exklusive by Auerswald: the a/b Switching Modules
Auerswald's a/b switch modules are made especially for TFS-Dialog 200. They can be connected any- where on the a/b line between the door entry and PBX systems, allowing you to use an existing doorbell or to switch on the stairway light.
Up to six a/b switch modules per TFS-Dialog 200 can be used with only one 2-wire cable. Each button can be assigned to and control one or several switch modules. Without problems, the modules fit in any of the existing flush-mounting junction boxes.

The highlights of TFS-Dialog 200:
Operation on an analog subscriber port of a PBX system made by Auerswald or other vendors
Telephone numbers and basic functions can be programmed via an extension telephone
Two levels of sensitivity for noisy and quiet environments
Excellent speech audibility, frequency-optimised amplifier electronics
Integrated switching contact for door opener, doorbell or light (doorbell transformer required)
Additional switching possibilities with a/b Switching Modules
Modern slim-line housing with exclusive design and
compact construction with only 16 mm height
Shatter-proof name plate covers with full-face, white background illumination with maintenance-free LED technology, without additional power supply
Artwork for the name plates lettering
Weather protection covering available as option

The weather protection cover for the door terminal systems TFS-Dialog 100 and 200 will be mounted behind the door terminal itself. It protects the terminal against direct effects of the weather like snow and rain. The used material is also natural anodized Aluminium (see picture on the right).
In addition, the weather protection cover can be used to cover holes in the wall which are too big. With additional drill-holes you can cover e.g. an already existing flush-mount module support of an older door terminal like TFS-2616 and TFS-Dialog. In this case the weather protection cover can be screwed directly to the existing in-wall module.
