端口 & 界面
主机接口 |
PCI-E |
Line-in |
Y |
麦克风/音频输入插孔 |
Y |
S/PDIF输出接口 |
Y |
S/PDIF输入端口 |
Y |
Line-out |
Y |
音频
音质 |
16 bit |
內置式 |
Y |
输出信号-噪声比(信噪比) |
109 dB |
系统要求
最低内存 |
256 MB |
最小硬盘空间 |
600 MB |
最低处理器 |
Intel Pentium 4 1.6 GHz / AMD Athlon XP 2000+ |

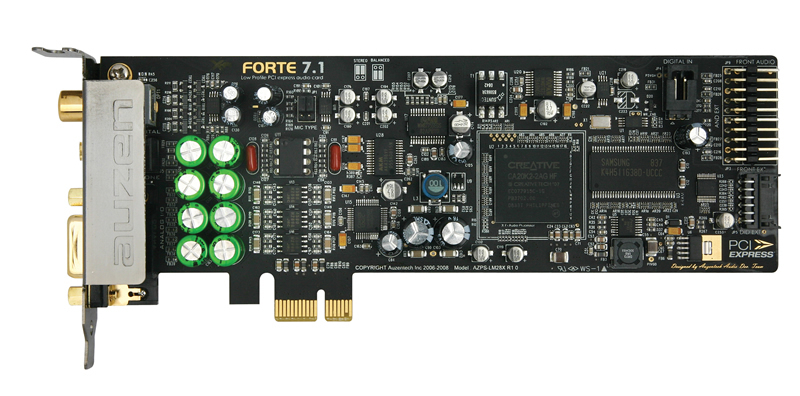

X-Fi Forte 7.1 Low Profile PCI Express Sound Card
The Auzen X-Fi™ Forte 7.1 is Auzentech's first Low Profile native PCI Express® audio card designed especially for gamers and audiophiles. Compared to the X-Fi™ chipset reference design, the X-Fi™ Forte improves the circuitry and upgrades the components. You can now listen to your Hi-Fi Headphone and use your professional Mic on your desktop PC, as well as enjoying audiophile-quality audio, thanks to the X-Fi™ Forte integrated Headphone Amplifier and Microphone Pre-Amplifier. Auzentech created the X-Fi™ Forte for customers who asked for a "high-end, low profile" sound card that would thrill music-, movie-, and gaming-enthusiasts alike.
PCI Express:
PCI Express™ (PCIe) is a serial bus standard that provides a higher throughput than the older, parallel PCI bus standard. Unlike PCI Express™ sound cards built with PCI processors adapted for the PCIe slot, the X-Fi™ Forte is built around Creative Labs' PCI Express™ processor. As a native-PCI Express™ sound card, the X-Fi™ Forte can take full advantage of the higher-throughput of the PCIe bus.
Sound:
With a D/A converter of 120dB level, high end audio components, and an analog design tuned for peak performance, the X-Fi™ Forte is designed to provide the best audio possible for Music, Games and Movies. End-users can further tune the audio via the replaceable OPAMP for the front audio (L/R).
Headphone & Microphone Amplifiers:
X-Fi Forte includes an Integrated Headphone Amplifier and Microphone Pre-Amplifier. You can now listen to your Hi-Fi Headphone and use your professional Mic on your desktop PC, as well as enjoying audiophile-quality audio.
Performance:
By using the latest Creative native PCI express chipset, the Auzentech X-Fi™ Forte provides high performance audio processing on-board while freeing system resources for other tasks. With 64MB X-Ram, it processes complicated 3D sound effects with ease.
Security:
The PCI-Express independent data transfer structure provides secure performance, important because audio requires continuous-secure data processing.
Key Features:
- Low Profile Audio Card.
- Developed around Creative X-Fi Native PCI Express audio processor.
- Support for Dolby Digital Live for Microsoft Windows® 7, Windows Vista® and Windows XP®.
- Support for DTS Neo:PC & DTS Interactive on Microsoft Windows Vista® and Windows® 7 (DTS™ for Win 7 and Vista via Download).
- Low-profile and standard-profile brackets included.
- Headphone Amplifier.
- Microphone Pre-Amp.
