端口 & 界面
| VGA（D-SUB）输出端口 |
1 |
| 复合视频输出 |
1 |
| VGA（D-SUB）输入端口 |
1 |
| USB 连接器形状 |
Mini-USB |
照相机
| 曝光类型 |
Manual, Auto |
| 光源 |
LED |
| 图像冻结 |
Y |
| Maximum frame rate |
30 fps |
| 有效传感器分辨率 |
3 MP |
| 传感器类型 |
CMOS |
技术细节
| 线缆锁插槽 |
Kensington |
| 灯泡功率 |
12.8 W |
| 内置麦克风 |
Y |
| 内存容量（图片） |
240 |
| 照片效果 |
Mirror, Negative film |
| 灯泡类型 |
LED |
重量和尺寸
| 折叠尺寸（宽x深x高) |
230 x 305 x 73 mm |
系统要求
| 可支持的Mac操作系统 |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
3MP, 1/2” CMOS, 1920 x 1080, 30 fps, 16x total Zoom, 8x Digital Zoom, LED light, SDHC, HDMI, mini USB 2.0, RGB, Composite, 2.44kg

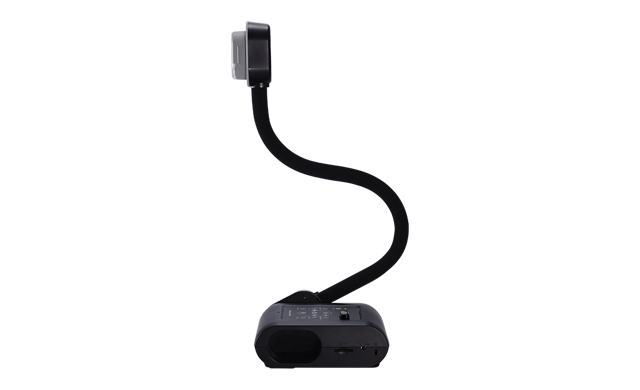

Captivate your students with sharp, vivid images captured by the AVerVision F15HD visualizer with impressive 16X zoom capabilities and a high-sensitivity image sensor. F15HD also supports full HD image streaming via HDMI input/output to ensure the highest quality learning experience. What’s more, you can capture objects from any angle thanks to AVer’s signature flexible arm. When not in use, the F15HD’s camera easily locks into the base for quick, secure transportation and storage. Simply put its superior flexibility and portability make it a perfect addition to every classroom.
<b>1-to-1 Connections with students</b>
Create a truly interactive learning environment with the Sphere2’s Class feature and AVer ClassSend student app for iOS, Android and Chrome. Through ClassSend, teachers can instantaneously push snapshots of live visualizer images to all connected student devices, letting students add their own notes to images and send them right back to share with the whole class.
<b>Advanced full HD image streaming via HDMI</b>
HDMI input and output allow teachers to make high-resolution, interactive multimedia presentations. F15HD ’s advanced and versatile connectivity is compatible with all current PCs, laptops and projectors, and ensures the highest quality image transmission - no HDMI to VGA convertor required.
<b>Smooth 30fps one-touch recording</b>
Record all the sounds and excitement of live experiments, head-to-head debates and object examination directly to an SD or SDHC card at 30fps. Playback the video during later class periods or put it online for students to view when they get home.
<b>Extended storage/playback options</b>
Save hundreds of high resolution (3M) images to an SD or SDHC card and take the images captured via the visualizer home with you, or playback image files already stored to your card when working with visualizer in class.
<b>Explore new possibilities with A+Suite</b>
A+Suite provides teachers with a range of interactive software to realize the full potential of their AVer visualizer or TabCam. Integrate live images seamlessly into existing teaching material, while maintaining easy access to camera functions and tools, such as annotation, recording, image capture and picture-in-picture.
