纸张处理
| 多页进纸检测 |
Y |
| 最大扫描范围（自动文档进纸器） |
216 x 356 mm |
| ISO A 系列文件最大尺寸 |
A4 |
| 原稿厚度（最小值） |
1.25 mm |
| ISO A-系列 尺寸（A0…A-9） |
A4 |
| 最大扫描长度 |
3000 mm |
性能
| 扫描噪音水平，操作 |
55 dB |
| 扫描驱动程序 |
ISIS, TWAIN |
| 每日占空比（最大值） |
6000 pages |
| 传感器类型 |
CCD |
| 档案格式(数码发送器) |
BMP, DOC, DOCS, GIF, HTML, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX, XPS |
| 光源 |
LED |
能量控制
| 输入电压 |
100-240 V |
| 功耗（关闭） |
0.32 W |
| 接受频率 |
50/60 Hz |
| 电流 |
2 A |
| 电源类型 |
AC |
扫描
| Scan speed (b/w, low res, A4) |
120 sec/page |
| Scan speed (b/w, high res, A4) |
80 sec/page |
| Scan speed (colour, low res, A4) |
120 sec/page |
| Scan speed (colour, high res, A4) |
80 sec/page |
| 输出色彩深度 |
24 bit |
| 双面ADF扫描速度（黑白，A4） |
120 ipm |
| ADF扫描速度（黑白，A4） |
60 ppm |
| 输出灰阶深度 |
8 bit |
| 光学扫描分辨率 |
600 x 600 DPI |
| 输入色彩深度 |
48 bit |
系统要求
| 最低内存 |
2048 MB |
| 最低处理器 |
Intel Core 2 Duo |
另外
| 扫描类型 |
ADF scanner |
| 最小扫描范围 （自动文档进纸器） |
50 x 50 mm |
| 双面ADF扫描速度（彩色，A4） |
120 ipm |
| ADF扫描速度（彩色，A4） |
60 ppm |
| 黑/白扫描色彩模式 |
Grayscale |
| 彩色扫描 |
Y |
| 包括 AC 适配器 |
Y |

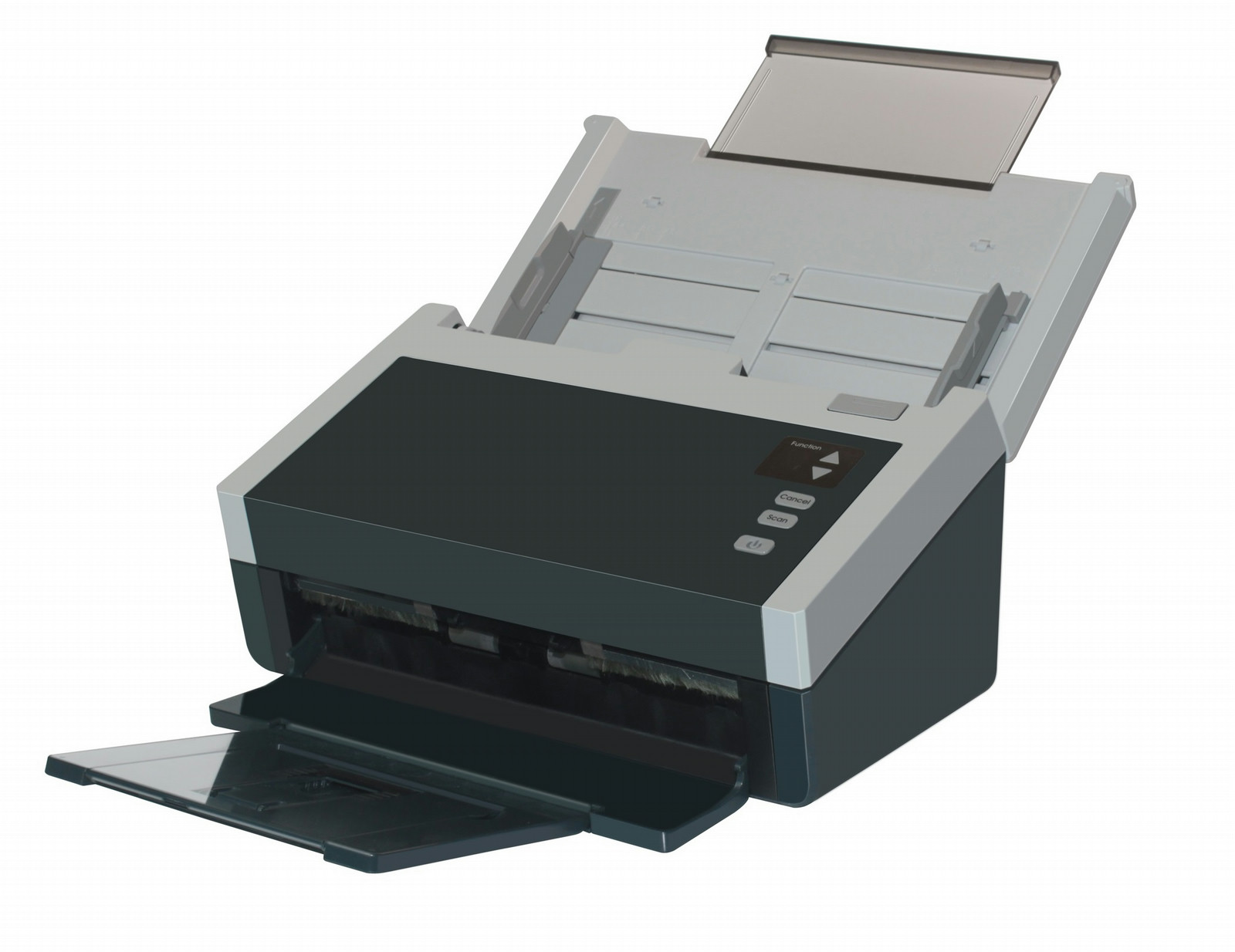

CCD, 600DPI, 120ipm, 60ppm, ADF, USB, 4.2 kg, black/grey
Support document width up to 9.5” (242 mm)
The AD240 boasts a unique and innovative design in comparison with its predecessors - the ability to accommodate document width up to 9.5” (242mm). The extended document width from standard 8.5” to 9.5” makes the AD240 more competitive to fit for a wider range of documents.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (50 x 50 mm/2” x 2”) to business document (240 x 256 mm/9.5” x 14”). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.
Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse roller for advanced paper separation capability, the AD240 delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.
Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
Compact Design to Save Your Space
The AD240 features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD240 can be easily carried and fit on a desk without taking up a lot of space.
Intuitive Button Scanning
The AD240 is easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.
Powerful Bundled Software Applications
The AD240 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AvScan , and PaperPort SE 14. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, FaceBook, or Evernote® with just a simple press of a button. The AVScan V5 and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
Features
- Fast scan rate up to 40 ppm/80 ipm (300 dpi in color, gray, or B&W)
- Max. document width up to 9.5” (242mm)
- Daily duty cycle up to 6,000 sheets
- Robust 80-page automatic document feeder (75 g/m2, 20 lb)
- Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
- Reverse roller technology delivers outstanding feeding reliability
- Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
- Press and scan to cloud servers via the bundled software Button Manager V2
- Earth-friendly LED technology
- Long page scanning mode up to 118”
- Auto power off setting
