纸张处理
| 多页进纸检测 |
Y |
| 自动进纸槽（ADF）纸张重量（厚度） |
28 - 200 g/m² |
| 最大扫描范围（自动文档进纸器） |
216 x 356 mm |
| 法律 |
Y |
| ISO A 系列文件最大尺寸 |
A4 |
| 原稿厚度（最小值） |
1.25 mm |
| 支持扫描原稿类型 |
Plastic Card |
| 最大扫描长度 |
3000 mm |
能量控制
| 功耗（节能） |
5 W |
| 输入电压 |
100-240 V |
| 接受频率 |
50/60 Hz |
| 电流 |
2 A |
| 电源类型 |
AC/USB |
性能
| 扫描噪音水平，操作 |
50 dB |
| 扫描驱动程序 |
ISIS, TWAIN |
| 每日占空比（最大值） |
4000 pages |
| 内置存储器 |
256 MB |
| 兼容性内存条 |
Not supported |
| 扫描至 |
TWAIN, USB |
| 内置处理器 |
N |
| 传感器类型 |
CCD |
| 档案格式(数码发送器) |
BMP, DOC, GIF, JPG, PDF, PNG, RTF, TIFF, TXT, XLS, XPS |
| 光源 |
LED |
扫描
| 增强的扫描分辨率 |
300 x 300 DPI |
| 输出色彩深度 |
24 bit |
| 双面ADF扫描速度（黑白，A4） |
80 ipm |
| ADF扫描速度（黑白，A4） |
40 ppm |
| 输出灰阶深度 |
8 bit |
| 光学扫描分辨率 |
600 x 600 DPI |
| 输入色彩深度 |
48 bit |
另外
| 扫描类型 |
Flatbed & ADF scanner |
| 最小扫描范围 （自动文档进纸器） |
50 x 63.5 mm |
| 双面ADF扫描速度（彩色，A4） |
80 ipm |
| ADF扫描速度（彩色，A4） |
40 ppm |
| 黑/白扫描色彩模式 |
Grayscale, Monochrome |
| 彩色扫描 |
Y |
ССВ, LED, ADF + Flatbed, 600 dpi, 256 MB SDRAM, 8,2 kg 588 x 319 x 272 mm, USB 2.0, 36W, 4000 sheets, Windows 2000/XP/Vista/7, A3/A4, 40 ppm/80 ipm

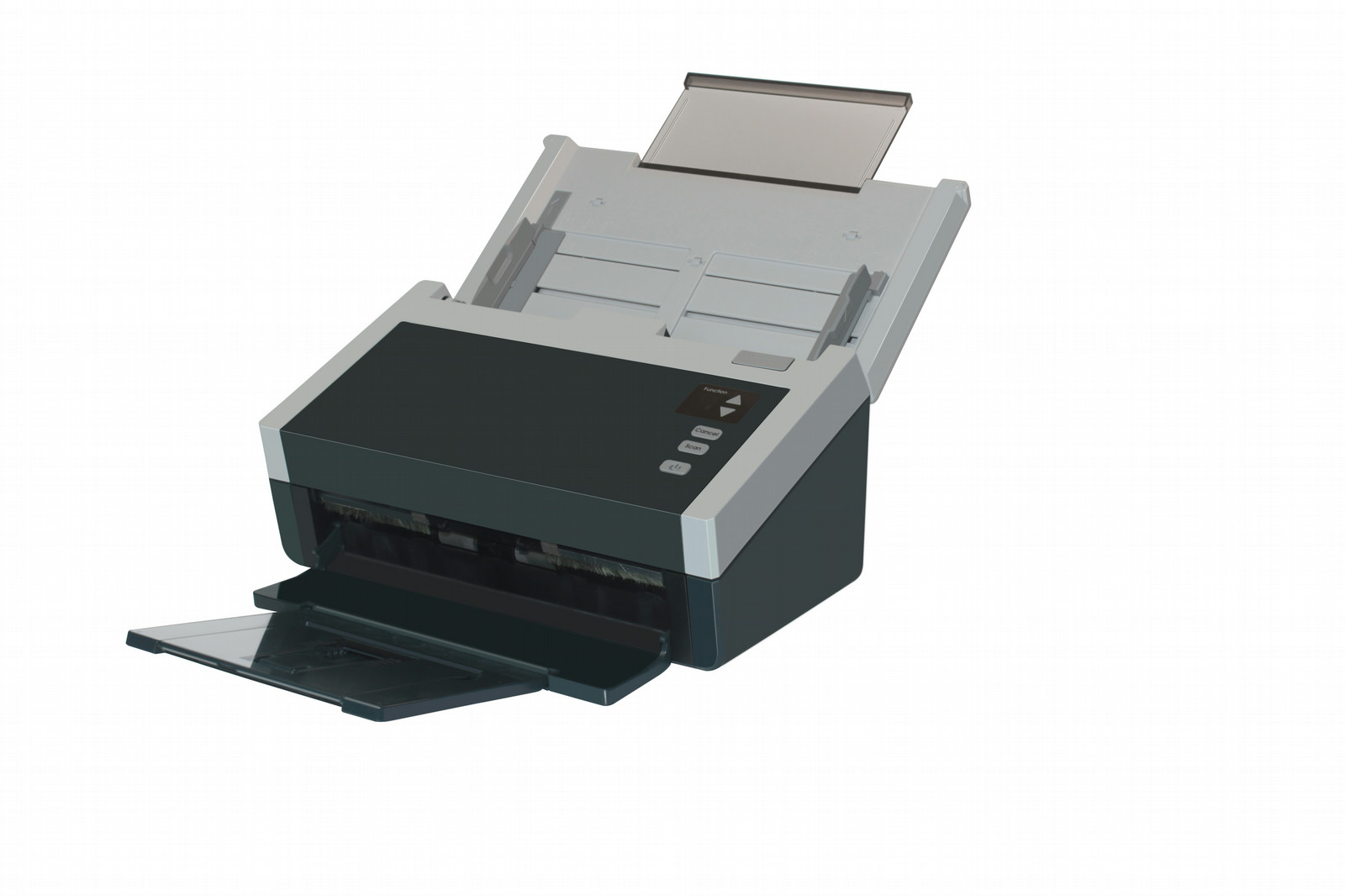

A Fast, Duplex, and Reliable Document Scanner
Complete your scan with a simple press
The AV1880 is a high-speed color duplex scanner. Designed to scan both documents up to legal size and plastic ID cards, the AV1880 can be used to capture all the information you need in a fast and reliable performance.
The scanner’s straight paper path provides smooth and reliable paper transmit and less document jam. It also ensures thicker paper up to 400 g/m2 and embossed plastic cards up to 1.25mm can be transmitted smoothly.
With the 50-page auto document feeder, the AV1880 offers fast scan rate up to 40 pages per minute for single-sided documents and 80 images per minute for double-sided documents at 200 dpi in either black and white or color mode.
A New Generation of Document Scanner
Enhanced with innovative features, the Avision AV1880 offers high throughput of 40 ppm and 80 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AV1880 harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.
Friction Roller Technology Enhances Feeding Reliability
Equipped with the innovative reverse roller technology for advanced paper separation from the auto document feeder, the AV1880 delivers outstanding feeding reliability for an even a wider variety of document types and weights.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2.5”) to business document (8.5” x 14”). The auto document feeder is also robust enough to feed paper up to 200 g/m2 and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness. What is best, up to 3 plastic ID cards in 0.8mm (thickness) and 20 pages of document in 20 lbs can be loaded together and scanned continuously without operator adjustments.
Earth-Friendly LED Technology
The AV1880 delivers high throughput and outstanding performance. However, it is earth-friendly at the same time. The LED technology requires no warm up time and is lower power consumption without generating mercury vapor as other traditional scanners using the CCFL (cold cathode fluorescent lamp) technology.
High-Volume Daily Duty Cycle
The scanner can be used to scan up to 4,000 pages per day through the 50-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.
Powerful bundled software applications
The AV1880 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager V2, AvScan 5.0, and ScanSoft PaperPort 14 SE. With Button Manager V2, you can scan to searchable PDF, JPEG, BMP, or GIF file format, save to folder on your computer, and scan to e-mail, image editing application, or even a cloud application such as Google Docs or Microsoft SharePoint with a press of a button. The AVScan V5 and ScanSoft PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
