端口 & 界面
DC-IN插口 |
Y |
串口数量 |
1 |
视频端口数量 |
5 |
视频接口类型 |
VGA |

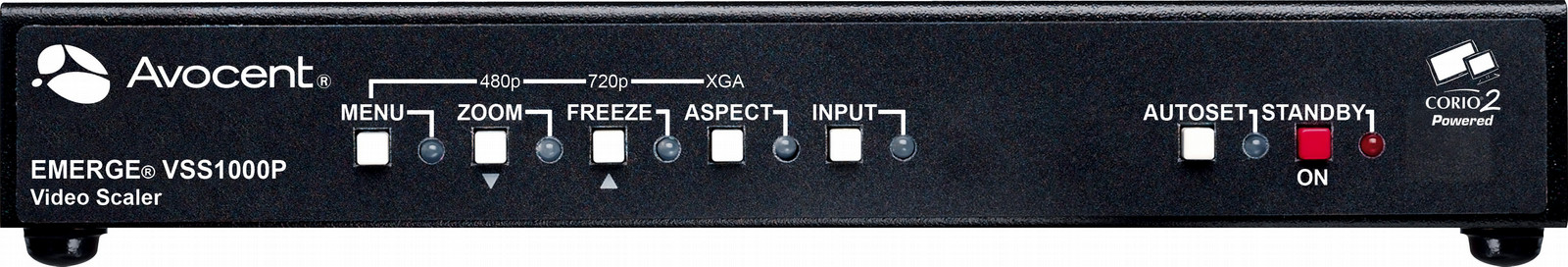

VSS1000P Video Scaler - Upscales Video to VGA
The Avocent Emerge VSS1000P PC/VGA video scaler provides high quality up conversion from composite and s-video formats to computer or HDTV signals and bidirectional high quality conversion between computer graphics and HDTV signals in a compact package. NTSC and PAL video standards are supported; as well as cross conversion within formats is also supported. Both input and output support any computer resolution up to 2048 x 2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. A wide variety of computer signal formats are available to support PC, Mac and workstation formats.
An On-Screen Display (OSD) is available to assist in setup. Variable zoom to 10X allows you to enlarge any part of the video image to fill the entire computer screen and pan controls allow you to move around to any area desired. Variable shrink to as little as 10% allows fitting the image onto most displays.
All the functions can be controlled via the front panel push buttons, an optional infrared controller or via an RS-232 connection. A Microsoft Windows-based control application is provided for GUI-based operation and most third party control systems interface serially with Avocent Emerge video scalers.
