性能
| 主板元件 |
Pico ITX |
| 自动开机功能 |
Y |
| PC健康监测 |
CPU, Temperature, Voltage |
内存参数
| 可支持内存时钟速度 |
1600 MHz |
| 支持的内存类型 |
DDR3L-SDRAM |
| 内存通道支持 |
Single |
| 内存插槽类型 |
SO-DIMM |
| 支持的内存模块容量 |
1GB, 2GB, 4GB, 8GB |
| 內存插槽数量 |
1 |
| 最大内部存储 |
8 GB |
内置输入/输出系统
| USB 2.0接口 |
1 |
| 串列ATA连接器数量 |
1 |
| SATA III连接器数量 |
1 |
| 12V 电源接头 |
Y |
| LVDS 接头 |
Y |
扩展卡接口
| 主机接口 |
Mini PCI Express |
| 扩展卡 USB 3.0 (3.1 Gen 1) 连接器 |
4 |
| UART 数量 |
2 |
| 扩展卡 PCI Express x1 插槽 |
1 |
| 扩展卡 mSATA 端口 |
1 |
| 扩展卡音频连接器 |
Y |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 电池性能 |
220 mAh |
Pico-ITX SBC, 1 x 204-pin SO-DIMM, AMI, Ethernet, USB 2.0, LVDS, PCI Express Mini Card, +12V DC, 100 x 72 mm
- Intel® Pentium® N3710 & Celeron® N3060 processor (Braswell SoC)
- 1 DDR3L-1600 SO-DIMM max. up to 8 GB
- 1 USB 2.0 ports
- PCI Express Mini Card

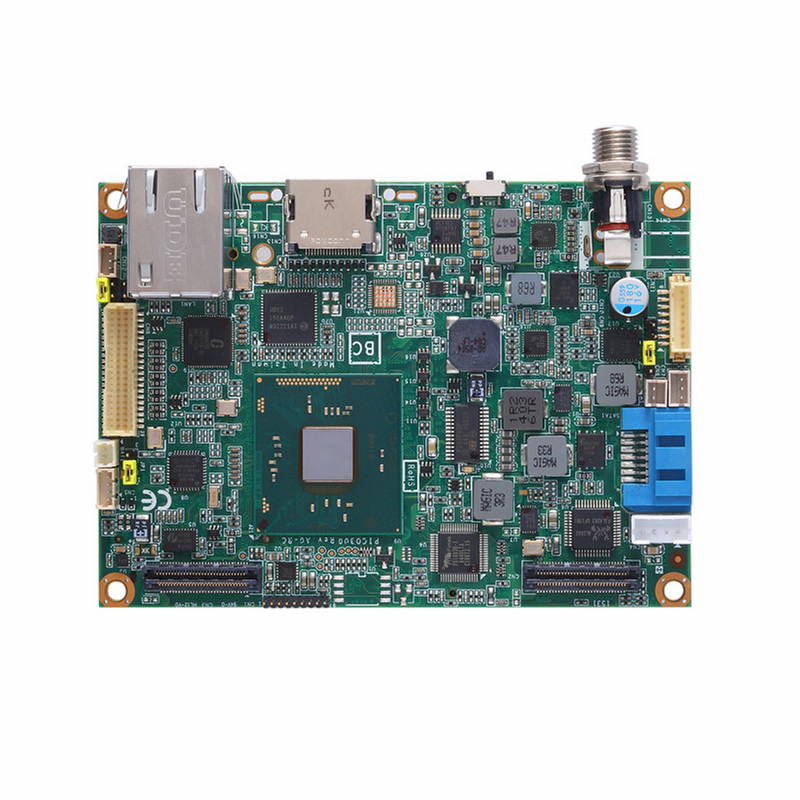

The PICO300, an extreme-compact fanless pico-ITX motherboard, is built with the Intel® Pentium® N3710 or Celeron® N3060 processor (codename: Braswell SoC). One SO-DIMM socket is provided to support up to 8GB of DDR3L-1600 memory. The PICO300 is supported in dual display configurations along with one 18/24-bit single/dual-channel LVDS and a choice of VGA or HDMI. Furthermore, the tiny 2.5” pico-ITX embedded board features Intel® integrated Gfx graphic engine to build excellent media and graphics performance capability. In addition, the compact size of the pico-ITX form factor also makes the PICO300 suitable for space-constrained embedded applications. It runs fanless operation, and supports -20°C to +60°C operating temperature. Combined all features as above, the PICO300 is ideal for any media editing, imaging, graphics and video intensive applications that be applied for a wide array of industrial IoT industries.
