技术细节
压缩等级 |
11 |
内置存储器 |
384 MB |
分辨率 |
160 x 120 pixels |
闪存 |
96 MB |
视频
MPEG-4的帧率 |
30 fps |
M-JPEG(运动静止图象压缩技术)帧率 |
30 fps |
系统要求
最低处理器 |
Pentium III CPU 500 MHz/AMD |
最低内存 |
128 MB |
联网
支持网络协议 |
IPv4/v6, HTTP, HTTPS, SSl/TlS*, TCP, QoS, SNMPv1/v2c/v3 (MIb-II), RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP DHCP, UPnP, bonjour, ARP, DNS, DynDNS, SOCKS, IEEE802.1X. |

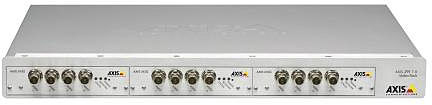

12 Channel Video Server Bundle CH - 3 x AXIS 243Q Blade mounted in an AXIS 291 1U Rack. Swiss power cable.
- Quick and professional installation of various video servers in the same rack
- Expandable system, simply by adding blades and wiring up
- Integrated power supply, for easy installation/expansion
- Higher density of video channels compared to standalone solution
Axis video server rack solution helps large, surveillance installations manage Axis video servers in a professional environment.
Improved serviceability and trouble-free unit replacement
Designed for improved serviceability and quick replacement of units, the rack holds up to 3 interchangeable and hot-swappable blades. There is no need to power down when installing or changing blades. The Axis video server rack combines high reliability and functionality with quick, flexible and professional installation.
Axis video server rack solution for blade video servers
The Axis video server rack solution offers improved serviceability
and trouble-free unit replacement or expansion - simply
add more blades. The rack provides serial communication and
I/O connectors at the rear of each slot, and a single network connection together with integrated power for simple installation. There is no need to power down when installing or changing blades. AXIS 291 1U combines high reliability and functionality with quick, flexible and professional installation.
Flexibility
AXIS 291 1U is designed for applications that need to be able to expand, not only by adding more channels, but also by using different types of cameras. It is ideal for airports, hotels and train stations or other premises where analog cameras are already installed.
