视频
| Maximum frame rate |
15 fps |
| 最大视频分辨率 |
1536 x 1152 pixels |
| M-JPEG(运动静止图象压缩技术)帧率 |
15 fps |
| MPEG-4的帧率 |
15 fps |
技术细节
| 内置存储器 |
2048 MB |
| 闪存 |
512 MB |
| 图像设置 |
Brightness, Rotation, Privacy mask, Mirroring, Contrast, Compression, Color |
| PTZ控制（平移/倾斜/缩放） |
Y |
安全
| 主动干扰警报 |
Y |
| IP地址过滤 |
Y |
| 视频运动检测 |
Y |
端口 & 界面
| BNC输入端口 |
16 |
| RS-485端口 |
4 |
| DC-IN插口 |
Y |
| RS-422端口 |
4 |
联网
| 支持以太网（PoE） |
Y |
| 支持网络协议 |
IPv4/v6, HTTP, HTTPS*, IEEE 802.1X* QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
M7010, 16-channel, H.264, 1536x1152, 15fps, ARTPEC-4 CPU, 2GB RAM, 518Mb Flash, 4xSDHC, PTZ, 4xRJ-45, 28W, 2.54kg
<b>Efficient 16-channel solution</b>

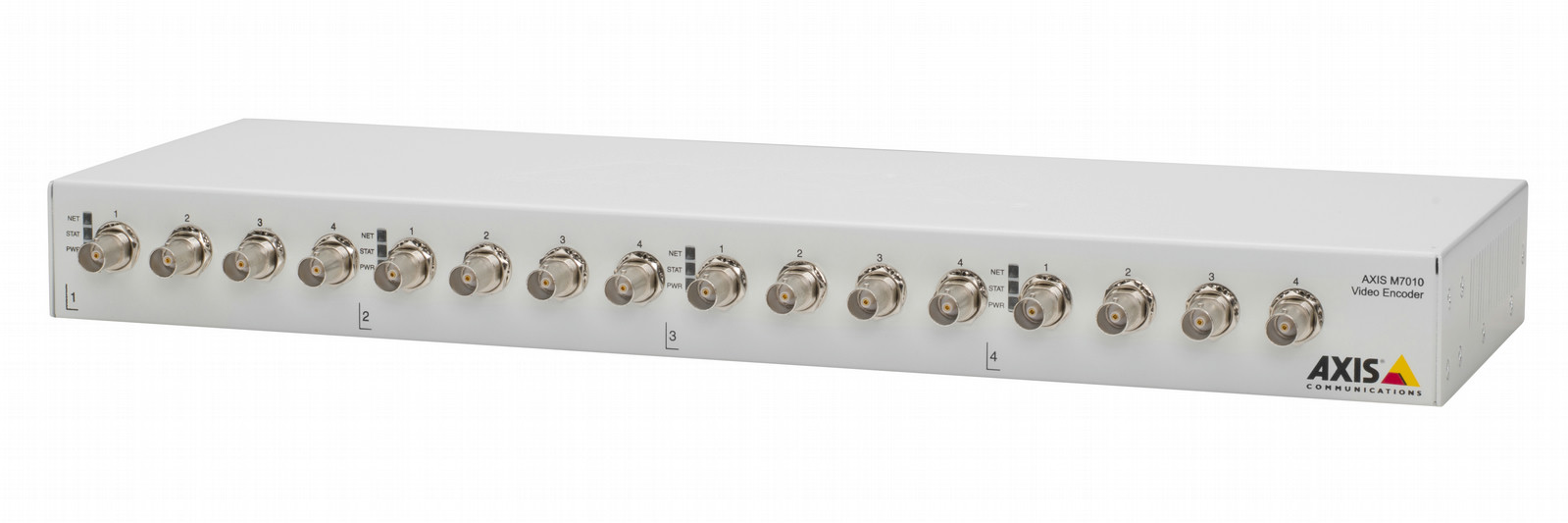

AXIS M7010 Video Encoder is an easy-to-use 16-channel video encoder with good video performance. It can simplify migration to network video without upgrading existing camera systems.
<b>Affordable, yet powerful</b>
AXIS M7010 provides edge storage through four microSDHC memory card slots. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ
<b>The easy way to a smarter CCTV system</b>
AXIS M7010 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package.
<b>Reduced bandwidth and storage</b>
AXIS M7010 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at 15 frames per second in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
