视频
| Maximum frame rate |
30 fps |
| 最大视频分辨率 |
720 x 576 pixels |
| M-JPEG(运动静止图象压缩技术)帧率 |
30 fps |
| MPEG-4的帧率 |
30 fps |
| PAL分辨率 |
720 x 576 pixels |
| NTSC分辨率 |
720 x 480 pixels |
技术细节
| 内置存储器 |
512 MB |
| 闪存 |
128 MB |
| 图像设置 |
Rotation, Privacy mask, Mirroring, Contrast, Compression, Color, Brightness |
| PTZ控制（平移/倾斜/缩放） |
Y |
端口 & 界面
| I / O端子端口 |
1 |
| BNC输入端口 |
4 |
| Line-in |
Y |
| RS-422端口 |
1 |
| RS-485端口 |
1 |
| DC-IN插口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| Line-out |
Y |
联网
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| 支持网络协议 |
IPv4/v6, HTTP, HTTPS*, IEEE 802.1X*, QoS 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| 无线局域网连接 |
N |
| 支持服务质量（QoS） |
Y |
| 支持以太网（PoE） |
Y |
安全
| 音频检测 |
Y |
| 主动干扰警报 |
Y |
| IP地址过滤 |
Y |
| 视频运动检测 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 自转 |
270 ° |
P7214 H.264, M-JPEG, 30/25 (NTSC/PAL) fps, PTZ Video Encoder
- Full frame rate in all resolutions
- Simultaneous H.264 and Motion JPEG
- Edge storage
- High resolution quad-view
- Two-way audio
- PTZ support
- Power over Ethernet
<b>High performance, 4-channel solution with excellent audio quality</b>

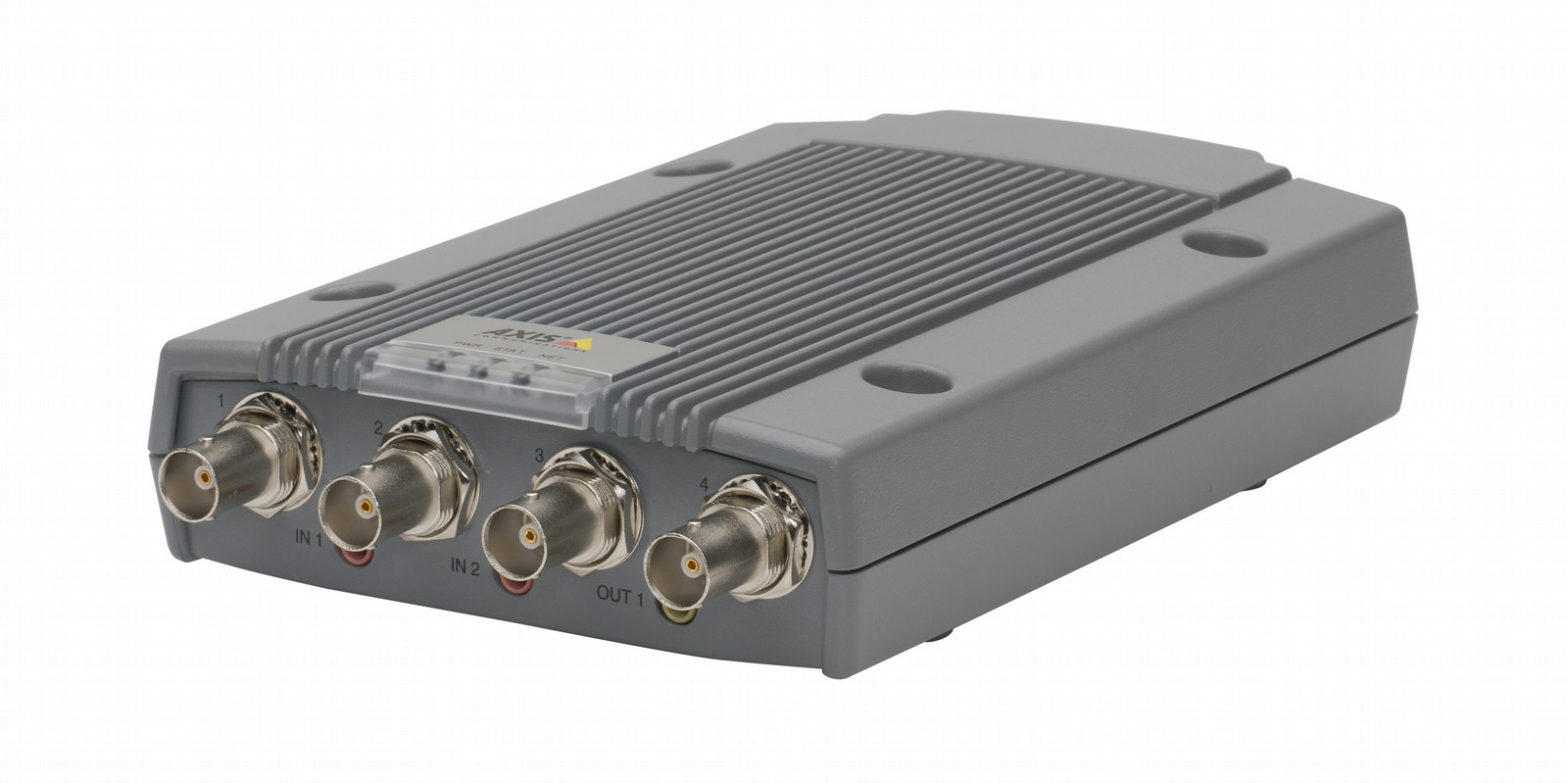

AXIS P7214 Video Encoder is a compact and cost-effective four-channel video encoder with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems.
<b>Powerful and full-featured</b>
AXIS P7214 provides edge storage through a microSDHC memory card slot. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. Configurable inputs/outputs can be connected to external relays and sensors for activating lights, locking/unlocking doors etc.
<b>The easy way to a smarter CCTV system</b>
AXIS P7214 is perfect for small and medium analog video installations, especially where an IP network infrastructure is already in place. It is designed for installation close to the cameras. The encoder is powered over Ethernet using the same cable as for data transmission, which simplifies installation. A power supply is also included in the package.
<b>Reduced bandwidth and storage</b>
AXIS P7214 can deliver two simultaneous video streams, one in H.264 and another in Motion JPEG, at full frame rate in resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is supported for increased flexibility.
