重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
64 x 100 x 27 mm |
| 接收器的重量 |
190 g |
端口 & 界面
| 操作频率 |
566.125 - 589.875 MHz |
麦克风
| 麦克风灵敏度 |
-95 dB |
| 麦克风频率 |
50 - 15000 Hz |
| 类型 |
Stage/performance microphone |

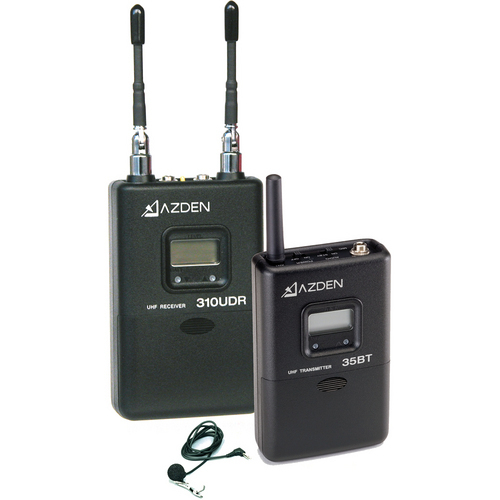

310LT UHF On-Camera Wireless Stystem (35BT/EX-503L body-pack + 310UDR receiver)
The 310 Series is a high quality diversity UHF camera-mount wireless system that features 188 User-Selectable frequencies displayed on an LCD screen to assure you of always finding a "free" channel.
The series consists of the 310UDR On-Camera receiver, the 35BT Belt-Pack transmitter with EX-503L MIC, the 35HT Handheld microphone/transmitter and the 35XT Plug-In transmitter.
The 310LT comes with a 35BT/EX-503L body-pack along with the 310UDR receiver.
- 188 Selectable UHF Freq. (566.125-589.875 MHz)
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/Multifunction Readout
- Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 “AA” Batteries (not included)
<b>Receiver Specifications:</b>
- Freq. Range: UHF 188 Selectable Freq. (566.125-589.875MHz)
- Type of Reception: FM
- Oscillator: PLL Synthesized
- RF Squelch Level: -95dBm
- Frequency Response: 50Hz – 15kHz
- S/N Ratio: >84dB (100% Deviation)
- Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
- 28 dBm (100% Deviation - Mic Level)
- Batteries: 2 “AA” Alkaline (2 x 1.5V) – 5-6 hours runtime
- 2 “AA” rechargeable Ni-MH (2 x 1.2V)
- Dimen.: 2.52"W x 3.93"H x 1.16"D (64 x 100 x 27 mm)
- Weight: Approx. 6.7oz (190g) w/batteries
<b>Body-pack Transmitter Specifications :</b>
- Freq. Range: UHF 188 Select. Freq. (566.125-589.875MHz)
- Oscillator: PLL Synthesized
- RF Power: 25mW
- Frequency Response: 50Hz – 15kHz
- Max. Deviation: ±40kHz @ 1kHz Modulation
- MIC Input – 11dBm
- Batteries: 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime
- 2 “AA” rechargeable Ni-MH(2 x 1.2V)
- Dimen.: 2.52"W x 3.93"H x 1.16"D (64 x 100 x 27 mm
- Weight Approx. 6oz (170g) w/batteries
