联网
| 广播风暴控制 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 网络标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G支持 |
N |
| 全双工传输 |
Y |
设计
| 外壳材料 |
Acrylonitrile butadiene styrene (ABS) |
| DIN导轨安装 |
Y |
| 液晶显示器指示灯 |
Link, Power, Speed |
| 国际保护（IP）代码 |
IP30 |
| 认证 |
UL 60950-1, CAN/CSA-C22.2 No.60950, U.S.A.: FCC Part 15 CISPR 2, EU: EN55011, EN55022 Class A, EN61000-3-2/3, EN55024, IEC61000-4-2/3/4/5/6/8/11 |
| 墙壁支架 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
环境条件
| 运行湿度范围(H-H) |
20 - 95% |
| 储存温度范围 (T-T) |
-50 - 95 °C |
| 储存相对湿度范围（H - H） |
0 - 95% |
性能
| 平均故障间隔时间 |
1580000 h |
| Auto-negotiation 自动协商功能 |
Y |
重量和尺寸
| 深度 |
102 mm |
| 宽度 |
70 mm |
| 高度 |
27 mm |
另外
| 数据传输率（最大） |
100 Mbit/s |
| 产品色彩 |
Blue |
| 运行温度范围（T - T） |
-40 - 85 °C |
Fast Ethernet, 5xRJ-45, LED, 10-30V, 2.4W, 70x102x27mm, IP30, 158000h MTBF, Blue
Introduction

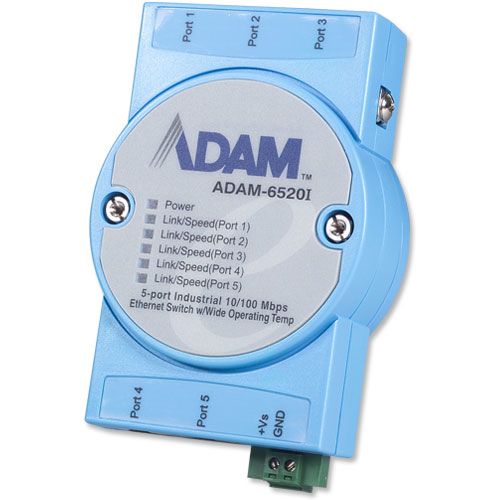

ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, panel and piggyback. Solid industrial-grade design assures reliable operation in common application areas like: semi conductor factories, inventory control environments, assembly lines, manufacturing and many more. All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments. The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
