联网
| 布线技术 |
10/100/1000Base-T(X) |
| 网络标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
设计
| 外壳材料 |
Aluminium |
| 液晶显示器指示灯 |
Y |
| 认证 |
ISO9001\nUL60950-1, EN60950-1, IEC60950-1\nFCC Part 15B, Class A\nVCCI Class A\nEN61000-6-4\nEN61000-6-2\nEN61000-4-2 (ESD Standards)\nEN61000-4-3 (Radiated RFI Standards)\nEN61000-4-4 (Burst Standards)\nEN61000-4-5 (Surge Standards)\nEN61000-4-6 (Induced RFI Standards)\nEN61000-4-8 (Magnetic Field Standards)\nIEC60068-2-6 Fc (Vibration Resistance)\nIEC60068-2-27 Ea (Shock)\nFED STD 101C Method 5007.1 (Free fall w/ package) |
性能
| 双机热备系统 |
Full, Half |
| 以太网的数据传输率 |
100 Mbit/s |
| 封包转发率（10 Mbps） |
14880 pps |
| 封包转发率（100 Mbps） |
148810 pps |
| 全双工传输 |
Y |
| 可支持的电缆类型 |
Cat3, Cat4, Cat5 |
| 国际保护（IP）代码 |
IP30 |
| 最大传输距离 |
2600 m |
| 类型 |
Network transmitter |
能量控制
| 功耗（一般操作） |
4.56 W |
| 交流电（AC）输入电压 |
12-48 V |
环境条件
| 运行湿度范围(H-H) |
5 - 95% |
| 储存温度范围 (T-T) |
-40 - 85 °C |
重量和尺寸
| 深度 |
90 mm |
| 重量 |
410 g |
| 宽度 |
42 mm |
| 高度 |
100 mm |
另外
| 产品色彩 |
Blue |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
-40 - 75 °C |
10/100Mbps, 1xRJ-45, 12-48V, IP30, Aluminium, 42x90x100mm, 410g, Blue
EXTEND YOUR ETHERNET INFRASTRUCTURE USING EXISTING COPPER WIRE OR COAXIAL CABLE
Elinx Extenders extend your Ethernet connections up to 8,530 ft. (2,600 m) via coaxial cable or up to 6,200 ft. (1,900 m) over a pair of unused straight copper wire. Our newest model, the EIR2-EXTEND-A features an M12 Ethernet connector option to help decrease unplanned downtime. The M12 connector option offers a quick, secure connection with increased reliability.

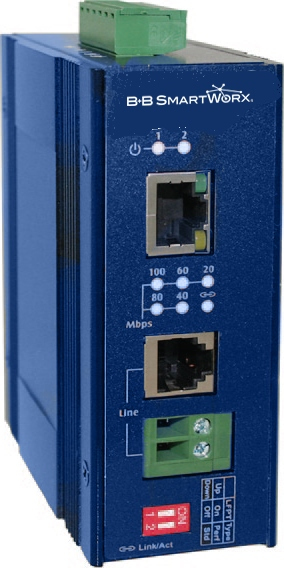

EIR2-EXTEND
The model EIR2-EXTEND extends your copper Ethernet connections up to 2200 meters (7218 feet) over twisted pair wire. The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards. Two EIR2-EXTEND models are required for the Ethernet extension, (one at each end of your extension points). The EIR2-EXTEND’s hardened design features high shock and vibration, electrical noise immunity, a wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The EIR2-EXTEND is the ideal Ethernet extender for environments where connectivity is crucial. External power supplies are required (not included).
