数据传输
| MAC 地址表 |
8000 entries |
| 交换容量 |
20 Gbit/s |
| 巨型帧 (Jumbo frames) |
9216 |
| VLAN 数量 |
256 |
| 队列数量 |
8 |
端口 & 界面
| 继电器输出 |
1 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 基本交换 RJ-45 以太网端口数量 |
8 |
| Combo SFP 端口数量 |
2 |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-TX, 10BASE-T |
管理功能
| 支持管理信息基本原则 |
Standard MIB, Private MIB |
| 网上管理 |
Y |
| 开关类型 |
Managed |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
联网
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 网络标准 |
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 全双工传输 |
Y |
| 可支持的电缆类型 |
Cat5e, Cat6 |
| 10G支持 |
N |
设计
| 认证 |
UL508, NEMA TS2, EN50121-4, EMI FCC Part 15 Subpart B Class A, EN 55011/55022, Class A, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| 墙壁支架 |
Y |
| 外壳材料 |
Metal |
| DIN导轨安装 |
Y |
| 液晶显示器指示灯 |
Y |
| 国际保护（IP）代码 |
IP30 |
重量和尺寸
| 重量 |
1300 g |
| 宽度 |
74 mm |
| 高度 |
105 mm |
| 深度 |
152 mm |
以太网电源（PoE）
| 电源保护功能 |
Over current, Reverse polarity |
| 以太网（PoE）电源端口电源 |
30 W |
| 以太网（PoE）供电总功率概算 |
120 W |
| 支持以太网（PoE） |
Y |
能量控制
| 输入电压 |
16.8 - 57.6 V |
| 功耗（一般操作） |
132 W |
光纤
| 以太网光缆技术 |
100BASE-LX, 100BASE-ZX, 1000BASE-LHX, 1000BASE-SX |
性能
| 程序包缓冲区内存 |
4.1 MB |
| 平均故障间隔时间 |
858835 h |
| 固件可升级 |
Y |
| 内置处理器 |
Y |
| Auto-negotiation 自动协商功能 |
Y |
安全
| 支持安全算法 |
802.1x RADIUS, HTTPS, PEAP, SNMPv3, SSH |
环境条件
| 运行湿度范围(H-H) |
10 - 95% |
| 储存温度范围 (T-T) |
-40 - 85 °C |
| 储存相对湿度范围（H - H） |
10 - 95% |
协议
| 管理协议 |
WebAccess NMS, LLDP, SNMP v1/v2c/v3, Traps, SMTP, RMON, SNTP, |
另外
| 巨型帧 |
Y |
| 运行温度范围（T - T） |
-40 - 75 °C |
| 产品色彩 |
Blue |
Managed, 8xRJ-45, 2xCombo SFP, 8000 MAC, 20Gbit/s, 9216 Jumbo Frames, POE, 30W/port, 74x152x105mm, 1.3kg, Blue

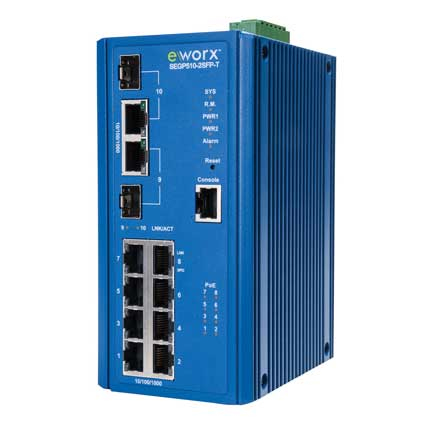

Fully Managed Industrial Ethernet Switch All Gigabit, PoE+, SNMP Modbus/TCP
The SEGP500 series is a fully managed PoE+ Gigabit Ethernet switch with industrial, ruggedized features designed to work in harsh environment applications. This switch offers all the features expected in a managed switch such as VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support. Smart PoE Management features allow advanced PoE settings and monitoring. Comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are also offered. The SEGP500 series support Power over Ethernet, simplifying deployments with PTZ cameras, wireless access points (APs), and other standards-compliant powered devices. The products comply with the 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switches' specific power budget. Using the management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. The SEGP500 series features a powerful suite of diagnostic, monitoring, network performance capabilities and industry leading eWorx IXM™ cross management technology: Cable diagnostics, IPv4/IPv6 PING, fiber SFP monitoring (DDMI), port utilization, traffic statistics, QoS and rate limiting - all available from the Web GUI. The unique management feature, IXM™, allows the installer to auto synchronize firmware updates and push configuration settings to either individual or groups of switches.
