端口 & 界面
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| DVI端口 |
Y |
| S-Video输入 |
Y |
| S- Video输出 |
Y |
| RS-232C |
Y |
| USB端口 |
N |
| 分量视频(YPbPr/YCbCr)输入 |
1 |
| DVI-D接口数量 |
3 |
其他功能
| 遵守工业标准 |
ANSI/AAMI ES60601-1, UL 60601-1, CAN/CSA-C22.2 , No. 60601-1-08, EN 60601-1, EN 60601-1-2 Class A, FCC 47 CFR Part 15 - Subpart B - Class A, CE (MDD), IPX2 |
显示器
| HD 类型 |
Full HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LCD |

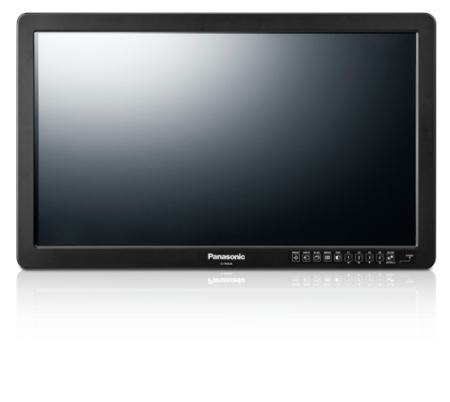

66.04 cm (26 ") Full HD LCD, IPS, 3D, 1920 x 1080, 8 ms, 350 cd/m², 1000:1, S-Video, SDI, DVI-D, RGB/YPbPr, HD15, RS232C, GPI, 7.1 kg, VESA
medical 3D LCD Display with dual-display function
- IPS - Pro Panel
- energy efficient with LED Backlight
- Natural-like 3D effect
- Bright and flicker-free image
- Parallax adjustment function
- Compatibility with popular 3D formats
- Interchangable between 2D and 3D
- IPX2 standard- splashproof
The new Medical 3D Full HD LCD Monitor gives surgeons an incredible viewing experience. It‘s used in complicated surgery, medical training and increasing efficiency through three-dimensional orientation. The natural-like 3D effect and excellent image quality is suitable for endoscopic surgery and microscopy. The light weight polarized glasses assure comfort and wearability in any situation.
Panasonic‘s medical 3D LCD monitor features flexible selection from 2D/3D modes and multiple display modes via OSD, function key, GPI and RS232C interfaces.
The EJ MDA 3D monitors are available as 26 and 32 inch.
