端口 & 界面
| 串口数量 |
1 |
| 电源插头 |
C14 coupler |
| 交流电(AC)插座数量 |
6 AC outlet(s) |
能量控制
| 输入工作电压(最大值) |
274 V |
| 输入工作电压(最小值) |
155 V |
| 最大电流 |
10 A |
| 电源输入频率 |
50/60 Hz |
| 输出功率(瓦特-安培) |
1000 VA |
| 输出工作电压(最小值) |
155 V |
| 输出工作电压(最大值) |
274 V |
| 输出功率 |
750 W |
电池
| 电池充电时间 |
4.5 h |
| 半载典型备用时间 |
27.5 min |
| 全载典型备用时间 |
11 min |
| 冷启动 |
Y |

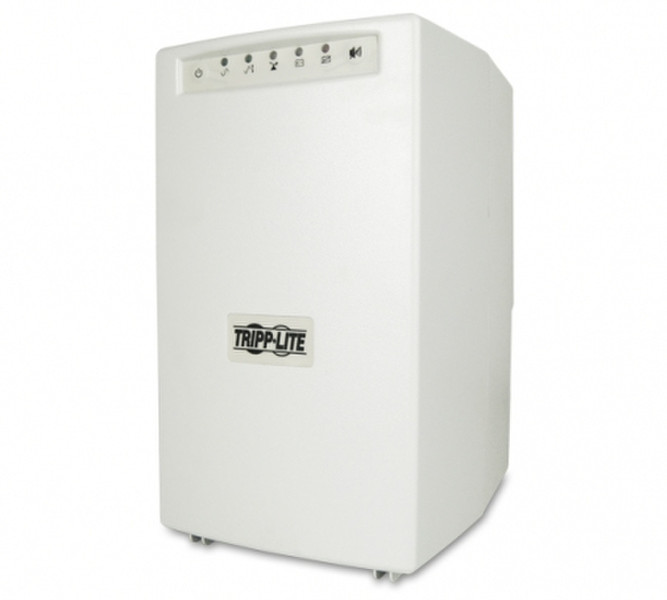

UPS 1200 Med Tower Line 1000VA
Uninterruptible Power Supply for medical applications
- up to 11 minutes at full load runtime (with 1000 VA load)
- Maintains sine-wave 230 V nominal output over an input range of 155 to 274 V
- USB-port, IEC320 plug & outlets
- with built-in isolation transformer
- Input: IEC320 C14 inlet (230 V) / Output: 6 IEC320 C13 (230 V)
The UPS series Med Grade Tower Line provide uninterruptible power supply. This system offer ideal UPS protection for applications in medical patient-care areas where CE/ IEC 60601-1 electrical medical equipment is required. The Line-interactive voltage regulation corrects brownouts as low as 155 V without using battery power.
The UPS Med Grade Tower Line Serie prevents shock potential and operational problems in sensitive electronic equipment. Complete power outages can be able bridged 11 minutes at full load runtime (with 1000 VA load).
